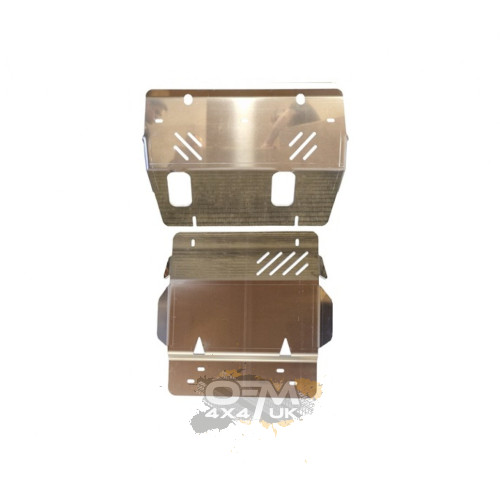

4mm Aluminium Engine & Sump Guard for Toyota Land Cruiser Prado 150 J150 2009–2023

This heavy-duty 4mm Aluminium Engine & Sump Guard is designed to protect the engine, sump, lower radiator area and vulnerable front underside of the Toyota Land Cruiser Prado 150 / J150 manufactured between 2009 and 2023.

Manufactured from substantial 4mm aluminium plate, this guard provides strong protection against rocks, deep ruts, raised ground, branches and other obstacles encountered during off-road driving while keeping additional vehicle weight lower than a comparable heavy-duty steel protection system.

The main protection shield is manufactured from aluminium, while the mounting brackets are made from steel to provide secure attachment to the vehicle. External aluminium reinforcement sections increase resistance to impact and deformation, and the complete assembly is powder coated for additional corrosion protection.

This combination makes the guard particularly well suited to overland, touring and expedition builds where strong underbody protection is required but controlling overall vehicle weight remains important.

Vehicle Compatibility: Toyota Land Cruiser Prado 150 / J150 2009–2023

Engine Compatibility: All engine variants

Important Service Information: This aluminium guard does not include an oil sump service opening, so removal may be required for some routine maintenance procedures.

Build a complete Prado 150 underbody protection package:
4mm Aluminium Engine & Sump Guard for Toyota Land Cruiser Prado 150
4mm Aluminium Gearbox Guard for Toyota Land Cruiser Prado 150
Steel Engine & Sump Guard for Toyota Land Cruiser Prado 150
Steel Gearbox Guard for Toyota Land Cruiser Prado 150
Steel Fuel Tank Guard for Toyota Land Cruiser Prado 150

Explore more underbody protection:
Steel & Aluminium Underbody Protection

Key Features

• Designed for Toyota Land Cruiser Prado 150 / J150
• Vehicle application: 2009–2023
• Suitable for all engine variants
• Protects the engine, sump, radiator and front underside
• Manufactured from heavy-duty 4mm aluminium plate
• External aluminium reinforcement sections improve impact resistance
• Steel mounting brackets provide strong attachment points
• Powder-coated finish for additional corrosion protection
• Approximate weight: 15kg
• Lower weight than comparable heavy-duty steel protection
• Designed around factory mounting locations
• Mounting screws, nuts, clips and fastening accessories included
• 24-month manufacturer warranty
• Ideal for off-road, overland, touring and expedition vehicles

Vehicle Compatibility

Technical Overview

4mm Aluminium Front Underbody Protection

The use of 4mm aluminium plate provides substantial front underbody protection while helping keep additional vehicle weight lower than a comparable steel protection system.

This is particularly valuable on Prado 150 builds already carrying additional equipment such as:

• Steel front bumper and winch
• Roof rack and rooftop tent
• Recovery equipment
• Camping and expedition equipment
• Auxiliary fuel or water storage
• Suspension upgrades
• Larger off-road wheels and tyres

When several accessories are fitted to the same vehicle, reducing unnecessary weight in individual components can make a meaningful difference to the overall build.

Why Protect the Engine and Sump?

The engine sump and front underside are among the first mechanical areas exposed when the Prado 150 encounters deep ruts, rocks, raised ground, tree roots and hidden trail obstacles.

A direct strike to the sump can cause deformation, cracking or oil loss. Continued engine operation following severe oil loss can result in major engine damage.

A dedicated underbody guard creates a protective barrier between the terrain and these vulnerable mechanical components, helping absorb and distribute impacts before they reach the engine directly.

Protects More Than Just the Sump

Although commonly described as a sump guard, this aluminium protection plate provides broader front underbody coverage.

The protection area includes:

• Engine underside
• Engine sump
• Lower radiator area
• Front underbody components
• Lower front protection zone

This makes the front guard the foundation of the Prado 150 aluminium underbody protection system.

Aluminium Shield with Steel Mounting Brackets

The main protection plate is manufactured from aluminium while the mounting brackets are manufactured from steel.

This combination allows the impact surface to benefit from aluminium's lower weight and excellent corrosion resistance while maintaining strong steel attachment points where the guard connects to the vehicle.

Screws, nuts, clips and all required fastening accessories are supplied with the guard.

External Aluminium Reinforcement

The exterior of the protection plate incorporates additional aluminium reinforcement sections designed to increase rigidity and resistance to deformation.

These reinforcements help distribute impact loads across a larger section of the guard rather than concentrating force at a single point.

This makes the protection plate suitable for vehicles that regularly encounter rocks, ruts and rough terrain.

Complete Prado 150 Aluminium Protection System

This front guard can be combined with the matching 4mm Aluminium Gearbox Guard to extend protection further underneath the vehicle.

• 4mm Aluminium Engine & Sump Guard – Prado 150 J150
• 4mm Aluminium Gearbox Guard – Prado 150 J150

Important: The matching aluminium gearbox guard cannot be mounted without this aluminium engine & sump guard. This front guard is a mandatory component of the aluminium gearbox protection installation.

Steel Protection Alternatives

Prado 150 owners who prefer traditional heavy-duty steel protection can choose from the matching steel range.

• Steel Engine & Sump Guard – Prado 150 J150
• Steel Gearbox Guard – Prado 150 J150
• Steel Fuel Tank Guard – Prado 150 J150

This gives owners the flexibility to select the most suitable material for each build rather than being limited to a single type of underbody armour.

Aluminium vs Steel Underbody Protection

Neither material is automatically the best choice for every vehicle. The correct option depends on terrain, vehicle payload and the importance of reducing additional weight.

Important Oil Service Information

This aluminium engine guard does not include an oil sump service opening.

The protection plate may therefore need to be removed for some routine maintenance procedures, including engine oil servicing depending on the specific engine configuration.

Ideal Uses

• Overland travel
• Expedition builds
• Green-laning
• Rocky and uneven tracks
• Deep ruts
• Forestry and agricultural roads
• Remote touring
• Water crossings with hidden obstacles
• Working vehicles
• Daily-driven 4x4s requiring additional protection

What’s Included

• 1 × 4mm aluminium engine & sump guard
• Steel mounting brackets
• Mounting screws / bolts
• Nuts
• Clips
• Required fastening accessories
• Installation instructions

Recommended Supporting Upgrades

• 4mm Aluminium Gearbox Guard for Toyota Land Cruiser Prado 150
• Steel Engine & Sump Guard for Toyota Land Cruiser Prado 150
• Steel Gearbox Guard for Toyota Land Cruiser Prado 150
• Steel Fuel Tank Guard for Toyota Land Cruiser Prado 150
• Differential protection
• Rock sliders / heavy-duty side protection
• Front and rear recovery points
• Suspension lift kit
• Off-road wheels and tyres
• Raised air intake / snorkel

Installation

• Vehicle-specific installation for Toyota Land Cruiser Prado 150 / J150
• Steel mounting brackets supplied
• Designed around factory mounting holes
• No structural vehicle modification should normally be required
• Required fastening hardware is included
• Installation instructions are supplied
• Install all fixings loosely before final alignment and tightening
• Check clearance around the engine, sump, radiator and suspension components
• Re-check mounting hardware after initial off-road use
• Professional installation is recommended where the vehicle has corrosion or previous underbody modifications

Estimated fitting time: approximately 1–2 hours depending on vehicle condition, previous modifications and workshop equipment.

Warranty

This underbody protection guard is supplied with a 24-month manufacturer's warranty.

FAQs

Q1: What vehicle does this aluminium sump guard fit?
A: It is designed for Toyota Land Cruiser Prado 150 / J150 models manufactured between 2009 and 2023.

Q2: Does it fit all Prado 150 engines?
A: Yes. The application is listed for all engine variants.

Q3: How thick is the aluminium?
A: The main protection plate is manufactured from 4mm thick aluminium.

Q4: How much does the guard weigh?
A: The complete guard weighs approximately 15kg.

Q5: What does the guard protect?
A: It is designed to protect the engine, sump, lower radiator area and vulnerable front underside.

Q6: Are the mounting brackets aluminium?
A: No. The main protection shield is aluminium while the mounting brackets are manufactured from steel.

Q7: Is the aluminium guard reinforced?
A: Yes. External aluminium reinforcement sections improve resistance to impact and deformation.

Q8: Is the guard powder coated?
A: Yes. The protection assembly is powder coated to provide additional corrosion protection.

Q9: Does this guard have an oil service opening?
A: No. This aluminium version does not include an oil sump service opening, so removal may be required for certain maintenance procedures.

Q10: Are mounting components included?
A: Yes. Screws, nuts, clips and all required fastening accessories are supplied.

Q11: Is a matching aluminium gearbox guard available?
A: Yes. A matching 4mm aluminium gearbox guard is available for the Prado 150 / J150.

Q12: Can the aluminium gearbox guard be fitted without this sump guard?
A: No. The matching aluminium gearbox guard requires this aluminium engine & sump guard for correct installation.

Q13: Is a steel alternative available?
A: Yes. A 2.5mm steel engine & sump guard and matching steel gearbox guard are also available for the Prado 150.

Q14: Can the aluminium front protection be combined with the steel fuel tank guard?
A: Yes. The aluminium engine and gearbox guards can be used alongside the steel Prado 150 fuel tank guard as part of a mixed-material underbody protection setup.

Q15: Is aluminium suitable for expedition builds?
A: Yes. Aluminium is particularly attractive for touring and expedition vehicles because it combines strong protection with lower weight and excellent corrosion resistance.

Q16: Can this be fitted to a lifted Prado 150?
A: Yes. A conventional suspension lift does not normally interfere with installation provided the original chassis and front underbody mounting arrangement has been retained.
