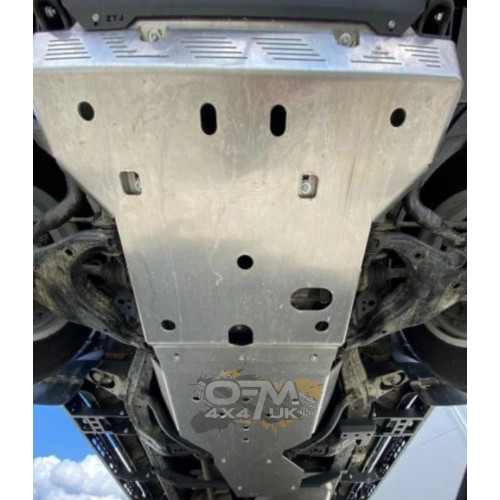

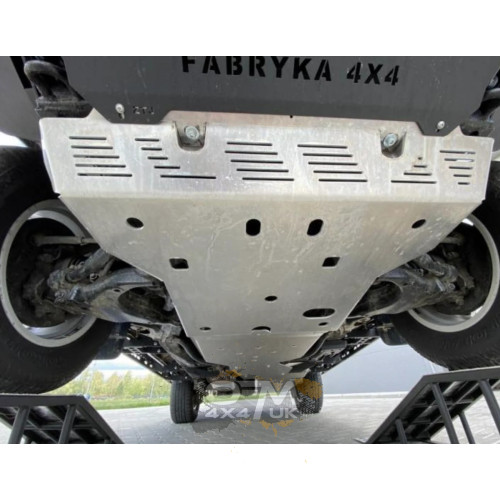

Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser Prado 150 J150 2017-On – 6mm

The Fabryka 4x4 Aluminium Engine & Sump Guard is a heavy-duty, vehicle-specific underbody protection plate designed for the Toyota Land Cruiser Prado 150 / J150 from 2017 onwards.

Manufactured from substantial 6mm aluminium plate, the guard provides dedicated protection beneath the engine and sump area, helping shield vulnerable components against rocks, deep ruts, raised ground, mud, branches and other obstacles encountered during demanding off-road driving.

The protection plate is precision laser cut, press-brake formed and hand finished by Fabryka 4x4 to provide accurate vehicle-specific fitment and durable protection for green-laning, overlanding, expedition travel and working 4x4 applications.

Vehicle Compatibility: Toyota Land Cruiser Prado 150 / J150 2017-On

Protection Area: Engine / sump / front underbody

Material: 6mm aluminium

Product Code: OLM

Important Model-Year Information: This OLM version is listed by Fabryka 4x4 for 2017-On Toyota Land Cruiser J150 models. Separate engine protection plates are available for earlier 2009–2017 and 2013–2017 applications, so the correct model-year-specific guard should be selected.

Build your Toyota Land Cruiser J150 aluminium underbody protection package:
Fabryka 4x4 Aluminium Engine & Sump Guard – J150 2017-On – 6mm
Fabryka 4x4 Aluminium Gearbox & Transfer Case Guard – J150 2017-On – 6mm
Fabryka 4x4 Aluminium Fuel Tank Guard – J150 2009-On – 6mm
Fabryka 4x4 Aluminium Engine & Sump Guard – J150 2009–2017 – 6mm
Fabryka 4x4 Aluminium Gearbox & Transfer Case Guard – J150 2009–2017 – 6mm
Fabryka 4x4 Aluminium Engine & Sump Guard – J150 2013–2017 – 6mm

Steel protection alternatives:
Steel Engine & Sump Guard for Toyota Land Cruiser Prado 150 J150
Steel Gearbox Guard for Toyota Land Cruiser Prado 150 J150
Steel Fuel Tank Guard for Toyota Land Cruiser Prado 150 J150

Existing aluminium alternatives:
4mm Aluminium Engine & Sump Guard for Toyota Land Cruiser Prado 150 J150
4mm Aluminium Gearbox Guard for Toyota Land Cruiser Prado 150 J150

Explore the complete underbody protection range:
Steel & Aluminium Underbody Protection

Key Features

• Designed specifically for Toyota Land Cruiser Prado 150 / J150 2017-On
• Protects the engine, sump and vulnerable front underside
• Manufactured from heavy-duty 6mm aluminium plate
• Precision laser-cut construction
• Press-brake formed for accurate vehicle-specific fitment
• Hand finished during manufacture
• Required mounting components included
• Can be removed when additional service access is required
• Excellent natural corrosion resistance
• Suitable for off-road, overland, touring, expedition and working 4x4 use

Vehicle Compatibility

Important 2017-On Fitment

This Fabryka 4x4 OLM engine guard is intended for the later Toyota Land Cruiser J150 application from 2017 onwards.

The J150 was produced through several revisions, and Fabryka 4x4 offers different engine guards for different production periods.

• Engine & Sump Guard – J150 2009–2017
• Engine & Sump Guard – J150 2013–2017
• Engine & Sump Guard – J150 2017-On – this product

Please confirm the vehicle production year and specification before ordering.

Technical Overview

Heavy-Duty Engine & Sump Protection

The engine sump and lower engine components sit close to the front underside of the Land Cruiser J150 and can become vulnerable when driving across rough or deeply rutted terrain.

Rocks, raised centre sections, tree roots and hidden obstacles can strike the underside directly. A substantial impact to the sump or surrounding engine components may potentially result in:

• Sump deformation
• Cracking or puncture
• Engine oil loss
• Damage to surrounding components
• Vehicle immobilisation
• Expensive mechanical repairs

The Fabryka 4x4 engine guard creates a substantial aluminium barrier beneath these vulnerable areas, helping reduce the risk of direct impact damage.

Heavy-Duty 6mm Aluminium Construction

The protection plate is manufactured from substantial 6mm aluminium, providing significantly more material thickness than lightweight factory splash shields or cosmetic undertrays.

This construction is intended to provide functional protection during demanding off-road use while retaining the practical benefits of aluminium.

• Strong resistance to underside impacts
• Lower weight than comparable heavy steel armour
• Excellent natural corrosion resistance
• Suitable for wet, muddy and exposed environments
• Well suited to overland and expedition vehicle builds

Precision Laser-Cut Construction

The 6mm aluminium plate is precision laser cut during manufacture.

This allows the external profile, fixing locations and detailed sections of the guard to be produced accurately and consistently for vehicle-specific fitment.

Accurate fabrication is particularly important around the engine and front suspension area where suitable component clearance must be maintained.

Press-Brake Formed for Strength & Fitment

After laser cutting, the protection plate is shaped using a press brake.

The formed sections allow the guard to follow the required vehicle profile while also increasing rigidity compared with a simple flat sheet of aluminium.

This helps the finished protection plate distribute impact loads across a larger area.

Hand-Finished Manufacturing

The protection plate is hand finished after the primary cutting and forming processes.

This combines precision machine fabrication with final manual finishing before the guard is supplied for installation.

Protection Against Common Off-Road Hazards

The engine and sump guard helps reduce exposure to common hazards encountered during demanding off-road use, including:

• Rocks and exposed stone
• Deep wheel ruts
• Raised track centres
• Tree roots
• Branches
• Mud and trail debris
• Hidden obstacles during water crossings
• Forestry tracks
• Agricultural roads
• Uneven mountain trails

Build a Complete 2017-On Fabryka 4x4 Protection System

This engine and sump guard forms the front section of the Fabryka 4x4 aluminium underbody protection package for later Toyota Land Cruiser J150 vehicles.

• Fabryka 4x4 6mm Aluminium Engine & Sump Guard – J150 2017-On – this product
• Fabryka 4x4 6mm Aluminium Gearbox & Transfer Case Guard – J150 2017-On
• Fabryka 4x4 6mm Aluminium Fuel Tank Guard – J150 2009-On

Together, the appropriate guards can provide protection beneath the:

• Engine
• Engine sump
• Gearbox
• Transfer case
• Fuel tank

Matching 2017-On Gearbox & Transfer Case Guard

The matching centre drivetrain protection for later-model J150 vehicles is:

Fabryka 4x4 Aluminium Gearbox & Transfer Case Guard for Toyota Land Cruiser J150 2017-On – 6mm

Combining these two 2017-On guards provides significantly broader protection from the front engine area through the central drivetrain.

Matching Fuel Tank Protection

Protection can be extended farther rearwards with the matching Fabryka 4x4 fuel tank guard:

Fabryka 4x4 Aluminium Fuel Tank Guard for Toyota Land Cruiser J150 2009-On – 6mm

The current manufacturer application for the fuel tank guard runs from 2009 onwards, allowing it to form part of both earlier and later J150 protection packages.

Earlier 2009–2017 J150 Models

This 2017-On OLM engine guard should not be selected for an earlier J150 solely because the vehicles share the same J150 platform designation.

For earlier vehicles, Fabryka 4x4 offers:

• 6mm Aluminium Engine & Sump Guard – J150 2009–2017
• 6mm Aluminium Gearbox & Transfer Case Guard – J150 2009–2017

The correct model-year-specific guard should always be selected.

2013–2017 Engine Protection Option

A separate Fabryka 4x4 engine guard is also available for the specific 2013–2017 application:

Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser J150 2013–2017 – 6mm

If your vehicle falls within an earlier overlapping application, confirm the exact vehicle specification before choosing the front protection plate.

Steel Underbody Protection Alternatives

OFM4x4 also offers steel underbody protection options for the Toyota Land Cruiser Prado 150 / J150.

• Steel Engine & Sump Guard for Toyota Land Cruiser J150
• Steel Gearbox Guard for Toyota Land Cruiser J150
• Steel Fuel Tank Guard for Toyota Land Cruiser J150

4mm Aluminium Alternatives

OFM4x4 also offers lighter aluminium protection options for the Land Cruiser J150:

• 4mm Aluminium Engine & Sump Guard
• 4mm Aluminium Gearbox Guard

6mm Aluminium vs 4mm Aluminium vs Steel Protection

Why Choose 6mm Aluminium?

Underbody protection needs to balance impact resistance, weight and corrosion resistance.

Using substantial 6mm aluminium gives this Fabryka 4x4 engine guard considerable material thickness while keeping overall weight lower than a comparable large steel plate.

This can be particularly useful on Land Cruiser builds already carrying additional equipment such as:

• Steel front and rear bumpers
• Winches
• Roof racks
• Rooftop tents
• Recovery equipment
• Auxiliary batteries
• Camping equipment
• Water storage
• Larger wheels and tyres

Ideal Uses

• Green-laning
• Overlanding
• Expedition travel
• Rocky trails
• Deep ruts
• Mountain tracks
• Forestry roads
• Agricultural access roads
• Remote touring
• Water crossings with hidden obstacles
• Working 4x4 vehicles
• Land Cruiser J150 builds requiring substantial engine and sump protection

What’s Included

• 1 × Fabryka 4x4 6mm aluminium engine & sump guard
• Required mounting components

Product Code: OLM

Note: The finished product may differ in some minor details from the photographs as part of ongoing manufacturing development.

Installation

• Vehicle-specific installation for Toyota Land Cruiser Prado J150 2017-On
• Required mounting components supplied
• Confirm vehicle production year before installation
• Position all mounting points before final tightening
• Check clearance around the engine, sump, steering and surrounding components
• Ensure no moving or vibrating component contacts the guard
• Re-check mounting hardware after initial off-road use
• The guard can be removed when additional engine service access is required

Professional installation is recommended where the vehicle has previous bumper, suspension, drivetrain or underbody modifications.

FAQs

Q1: What vehicle does this Fabryka 4x4 engine guard fit?
A: It is designed for Toyota Land Cruiser Prado 150 / J150 models from 2017 onwards.

Q2: Why is this listed as 2017-On when the Fabryka 4x4 URL contains 2016?
A: The current Fabryka 4x4 product title specifies Toyota LCJ150 2017-. We therefore use the current manufacturer application rather than the older wording retained in the URL.

Q3: Does this fit 2009–2017 J150 models?
A: A separate Fabryka 4x4 engine protection plate is available specifically for the earlier 2009–2017 application.

Q4: What does this guard protect?
A: It protects the engine, sump and vulnerable front underside against direct impacts from rocks, ruts and other terrain obstacles.

Q5: How thick is the aluminium?
A: The protection plate is manufactured from 6mm thick aluminium.

Q6: How is the guard manufactured?
A: The aluminium plate is precision laser cut, formed using a press brake and then hand finished.

Q7: Is mounting hardware included?
A: Yes. The required installation components are supplied with the guard.

Q8: Can the engine guard be removed for servicing?
A: Yes. It can be removed when additional access to the underside of the engine is required.

Q9: Is a matching 2017-On gearbox and transfer case guard available?
A: Yes. A dedicated Fabryka 4x4 6mm aluminium gearbox and transfer case guard is available for J150 models from 2017 onwards.

Q10: Is matching fuel tank protection available?
A: Yes. A Fabryka 4x4 6mm aluminium fuel tank guard is available for the J150 range from 2009 onwards.

Q11: Can I build a complete 2017-On aluminium protection package?
A: Yes. This engine guard can be combined with the matching 2017-On gearbox and transfer case guard and the J150 fuel tank guard for broader underbody protection.

Q12: Why is model year important?
A: Fabryka 4x4 produces different engine protection plates for different J150 production periods, so the correct model-year-specific product should be selected.

Q13: Is there a separate 2013–2017 engine guard?
A: Yes. Fabryka 4x4 also produces a separate engine protection plate listed specifically for the 2013–2017 application.

Q14: Are steel alternatives available?
A: Yes. OFM4x4 also offers steel engine, gearbox and fuel tank protection options for the Toyota Land Cruiser J150.

Q15: Are lighter aluminium alternatives available?
A: Yes. OFM4x4 also offers 4mm aluminium engine and gearbox protection options for the Land Cruiser Prado 150.

Q16: Why choose the Fabryka 4x4 6mm aluminium version?
A: It combines substantial material thickness with strong protection, excellent corrosion resistance and lower weight than comparable heavy steel armour.

Q17: Is this suitable for serious off-road use?
A: Yes. The guard is designed to protect vulnerable engine components during demanding off-road, overland, expedition and working 4x4 use.
