550FR Drive Lowering Kit for Dacia Duster 4WD Suspension Lifts

550FR Drive Lowering Kit for Dacia Duster 4WD is designed to restore correct drivetrain geometry after installing a suspension lift kit.

When a Dacia Duster is lifted, the operating angles of the CV joints, driveshafts and drivetrain components increase. While a suspension lift improves ground clearance and off-road capability, excessive driveline angles can accelerate wear, increase vibration and place additional stress on CV joints, driveshafts and transmission components.

The 550FR kit lowers key drivetrain mounting points, helping to reduce CV joint operating angles and restore a more favourable driveline position. This helps improve long-term reliability while supporting suspension lifts commonly fitted to Dacia Duster 4WD vehicles.

Vehicle Compatibility

*Please verify compatibility before ordering.

Compatible Suspension Lift Heights

• 30mm suspension lifts
• 35mm suspension lifts
• 40mm suspension lifts
• 50mm suspension lifts

Technical Specifications

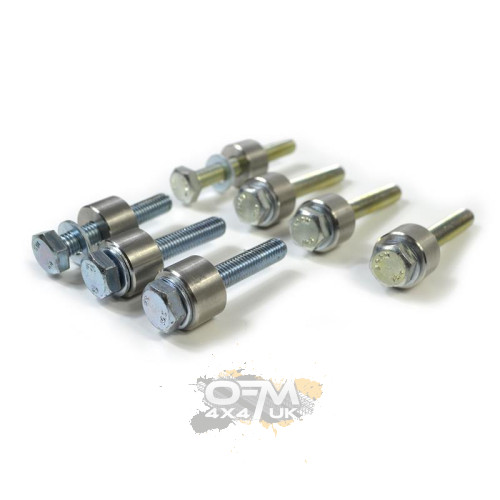

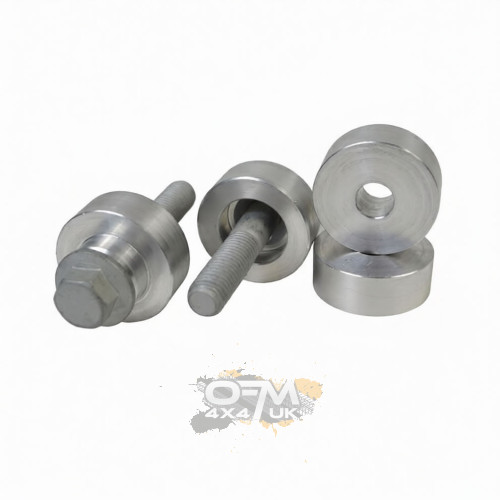

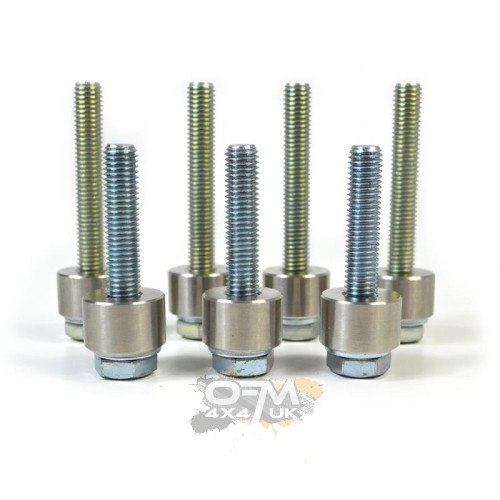

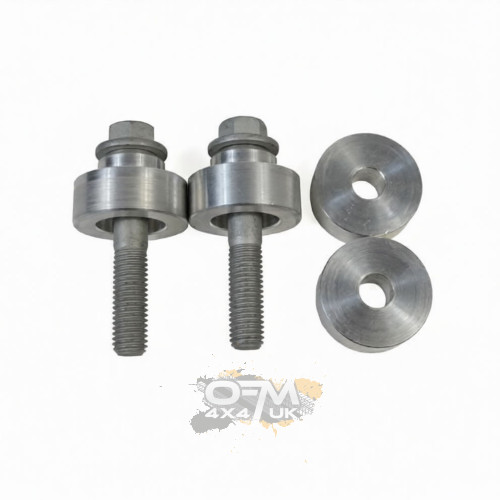

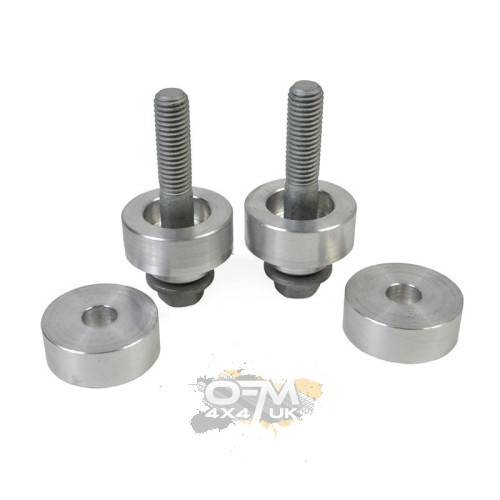

What's Included

• 4 × Right engine mount spacers
• 3 × Left gearbox mount spacers
• 4 × Rear subframe spacers
• Extended mounting bolts
• Installation washers

The installation guide confirms fitment components for the right engine mount, left gearbox mount and rear subframe mounting locations. :contentReference[oaicite:0]{index=0}

Installation Locations

The kit installs at three primary locations:

• Right engine mount
• Left gearbox mount
• Rear subframe mounting points

The supplied installation guide identifies each mounting location and installation point. :contentReference[oaicite:1]{index=1}

Benefits After Installation

• Reduced CV joint operating angles
• Improved drivetrain geometry
• Reduced stress on driveshafts
• Reduced strain on transmission mounts
• Improved suitability for lifted vehicles
• Better long-term drivetrain reliability
• Supports off-road suspension upgrades
• Helps maintain smooth driveline operation

Typical Use Cases

• Dacia Duster fitted with a +30mm lift kit
• Dacia Duster fitted with a +35mm lift kit
• Dacia Duster fitted with a +40mm lift kit
• Dacia Duster fitted with a +50mm lift kit
• Expedition and overland vehicles
• Off-road and green-lane builds
• Vehicles experiencing increased CV angles after lifting

Installation Notes

• Professional installation recommended
• Vehicle must be safely supported during installation
• All mounting hardware should be torqued to manufacturer specifications
• Suitable for vehicles already fitted with suspension lifts
• Post-installation inspection is recommended

The manufacturer states that installation should be performed by a qualified professional. :contentReference[oaicite:2]{index=2}

Frequently Asked Questions

What does the 550FR kit do?

The kit lowers key drivetrain mounting points to reduce CV joint and driveshaft operating angles after fitting a suspension lift.

Do I need this with a 30mm lift?

Many owners fit a drivetrain lowering kit alongside 30mm suspension lifts to improve driveline geometry.

Do I need this with a 50mm lift?

It is highly recommended on larger suspension lifts where CV operating angles increase significantly.

Does this increase ground clearance?

No. The purpose of this kit is to correct drivetrain geometry after a lift kit has been installed.

Will this reduce CV joint wear?

Reducing operating angles can help minimise stress placed on CV joints and related drivetrain components.

What components are lowered?

The kit lowers the engine mount, gearbox mount and rear subframe mounting points.

Can it be installed on a standard-height vehicle?

The kit is intended primarily for vehicles fitted with suspension lift kits.

Is professional installation recommended?

Yes. Professional installation is strongly recommended.
