Stainless Braided Brake Lines Kit for Toyota Land Cruiser J70 Series (1984–2016) 2.4 TD

Stainless Braided Brake Lines Kit for Toyota Land Cruiser J70 Series 1984–2016 2.4 Turbo Diesel

This stainless braided brake line kit is designed for Toyota Land Cruiser J70 Series vehicles (1984–2016) fitted with the 2.4 Turbo Diesel engine. Built to a high standard, these hoses replace the factory rubber brake lines to minimise expansion under braking pressure, resulting in a firmer pedal feel and more consistent braking performance.

This upgrade is particularly beneficial for older J70 models used for off-road driving, overland travel, towing and heavy-duty applications. Custom hose lengths can be supplied to suit suspension lift kits, ensuring safe routing and correct slack at full axle articulation.

Key Features

• Vehicle-specific braided brake line kit for Toyota Land Cruiser J70 Series
• Designed for 2.4 Turbo Diesel variants
• Reduced hose expansion for improved brake pedal feel
• Improved braking consistency under load and heat
• PTFE inner core with stainless steel braid
• Protective outer coating for abrasion and corrosion resistance
• Custom lengths available for suspension lifts

Vehicle Compatibility

• Toyota Land Cruiser J70 Series
• Model years: 1984–2016
• Engine: 2.4 Turbo Diesel

Due to the long production span of the J70 Series, brake hose routing and fittings can vary. If you are unsure about compatibility, contact us with your vehicle year, engine and axle configuration.

Lifted Vehicles & Custom Hose Lengths

Extended braided brake lines are strongly recommended for vehicles fitted with suspension lift kits. Custom hose lengths can be supplied to match your setup.

• Advise your suspension lift height (e.g. 50 mm / 2", 75 mm / 3", 100 mm / 4")
• Confirm if axle drop brackets, extended shackles or relocated mounts are fitted
• Photos at full axle droop can help ensure correct hose length

What’s Included

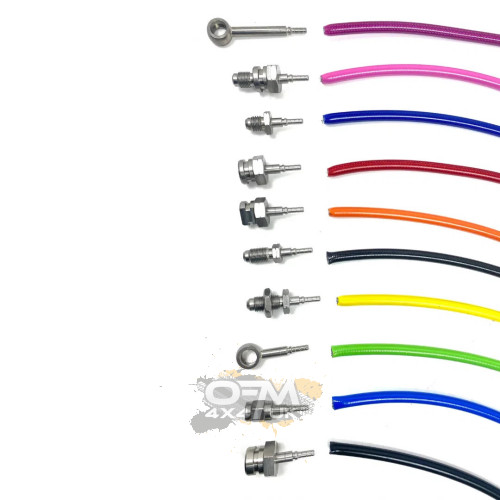

• Stainless braided brake hoses (vehicle-specific flexible line set)
• Required banjo bolts (where applicable)
• Copper crush washers (where applicable)
• Basic installation guidance

Technical Specifications

• Inner hose: PTFE (Teflon)
• Outer: Stainless steel braid with protective PVC cover
• Fittings: Stainless steel
• Working pressure: approx. 290 bar
• Burst pressure: approx. 870 bar
• Temperature range: -70°C to +260°C

Installation Notes

• Professional installation is strongly recommended
• Brake system must be fully bled after installation
• Check hose clearance at full steering lock and full suspension articulation
• Recheck all fittings after the first test drive

Recommended Use Cases

• Restored or modified Land Cruiser J70 builds
• Overland and expedition vehicles
• Off-road and agricultural use
• Towing and heavy-load applications

Shipping & Delivery

• UK delivery via tracked courier
• Custom-length hoses may require additional build time
• Contact us if you require delivery by a specific date

FAQs

1. Does this kit fit all Toyota Land Cruiser J70 models?
This kit is designed for J70 Series vehicles with the 2.4 Turbo Diesel engine. Due to long production years, confirmation may be required.

2. Is this suitable for lifted vehicles?
Yes. Extended brake lines can be supplied to suit suspension lift kits.

3. Will this improve braking performance?
Braided brake lines reduce hose expansion, giving a firmer pedal and more consistent braking feel.

4. Are these suitable for off-road use?
Yes. Stainless braided brake lines are ideal for off-road, towing and heavy-duty use.

5. Is professional installation required?
Professional installation is strongly recommended for safety and correct brake system bleeding.

6. How do I make sure I order the correct kit?
Send us your vehicle year, engine details and suspension setup and we will confirm compatibility.
