Desert King suspension for Rav4 III and IV gen. + 2 inches

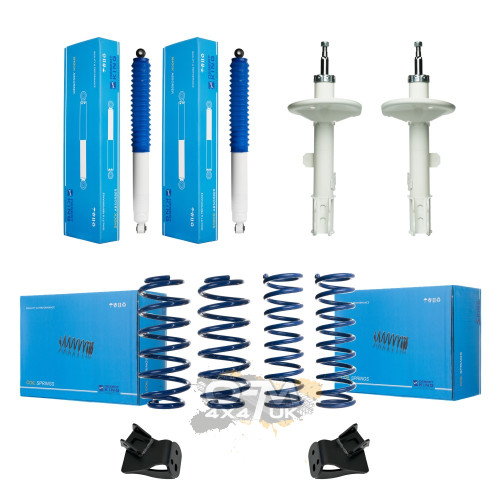

Desert King suspension for Rav4 III and IV gen. + 2 inches. Supplied as 4 coil springs and 4 shock absorbers and 2 replacement lower rear shock mounts. Select this package for the vehicle and suspension application listed below. Before ordering, check the engine, body style, existing suspension height and any permanent accessory load. The compatibility notes, supplied components and installation requirements below explain the configuration. Contact ofm4x4.co.uk if you need help matching the package to your vehicle.

Specifications

What is included?

4 coil springs and 4 shock absorbers and 2 replacement lower rear shock mounts.

Vehicle compatibility and installation

Toyota RAV4 III/IV 2006–2018. Fit the supplied lower rear shock mounts in place of the original mounts. Longer front sway bar links, such as MSL0084HD or a compatible alternative, are required separately.

This suspension kit is compatible with all engine versions of the Toyota RAV4 from 2006 to 2018. It provides a 2-inch lift (approx. 5 cm) without making the suspension overly stiff, preserving driving comfort and maintaining excellent off-road traction. The spring stiffness is perfectly matched with the shock absorbers’ damping force, ensuring precise vehicle control on both rough terrain and paved roads.

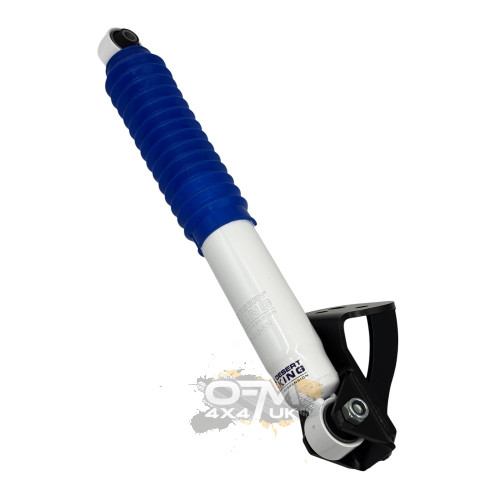

Due to the larger diameter of the upgraded rear shock absorbers, the kit includes custom lower shock mounts, which must replace the factory ones for proper fitment.

Note: Because of the increased shock diameter, custom lower rear shock mounts are included and must be installed in place of the original ones.

2x Lower Rear Shock Mounts (installation kit)

To ensure proper suspension geometry after lifting, longer front sway bar end links are required, such as the MSL0084HD or a compatible alternative. This is a crucial component for safe and correct installation.

Kit includes: 4 springs, 4 shock absorbers, and 2 custom rear lower shock mounts.

Check engine, body style, axle load and existing suspension changes before fitting. Arrange professional installation and wheel alignment. Shock absorbers alone do not raise the vehicle; match them to the stated suspension height.

Frequently asked questions

Is this the correct part for my vehicle?

Check the vehicle, generation, body style and engine against the application above. Contact ofm4x4.co.uk with your vehicle details if unsure.

What is supplied?

4 coil springs and 4 shock absorbers and 2 replacement lower rear shock mounts.

What suspension height is this intended for?

50mm / 2-inch. The achieved height can vary with vehicle weight and existing suspension.

Does the price cover a pair or a single component?

4 coil springs and 4 shock absorbers and 2 replacement lower rear shock mounts. The price is for this listed package.

Are additional parts needed?

Toyota RAV4 III/IV 2006–2018. Fit the supplied lower rear shock mounts in place of the original mounts. Longer front sway bar links, such as MSL0084HD or a compatible alternative, are required separately.

Will shock absorbers alone lift my vehicle?

No. Springs or other lift components determine ride height. Shock absorbers must match the suspension configuration.

Should the alignment be checked after fitting?

Yes. Check wheel alignment, clearances and suspension travel after installation.

Can you help check fitment?

Contact ofm4x4.co.uk with the product reference and your vehicle’s year, engine, body style and current lift.
