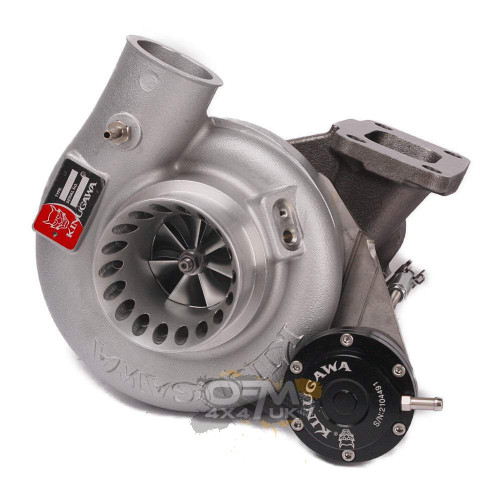

Kinugawa TD05H-16G 7cm Turbo for Toyota Land Cruiser 1HD-T / 1HD-FT / 1HD-FTE – Up to 200HP

The Kinugawa TD05H-16G 7cm Turbocharger is a fast-spooling performance turbo upgrade for Toyota Land Cruiser models powered by the legendary 1HD-T, 1HD-FT and 1HD-FTE 4.2-litre turbo diesel engines.

Rated by Kinugawa for approximately 150–200HP potential crank / flywheel power, the TD05H-16G is the most response-focused turbo in our six-model Kinugawa Land Cruiser 1HD range. It is an excellent choice for daily-driven, touring, overland and off-road Land Cruisers where quick spool, low-RPM response and driveability are more important than chasing maximum peak horsepower.

The turbo combines a 48.3 / 68.0mm 16G compressor wheel with a 49 / 57mm TD05H turbine wheel and compact 7cm / A/R .49 turbine housing. The Toyota CT26-style 4-bolt turbine inlet and outlet help retain compatibility with the original-style exhaust manifold and dump-pipe arrangement on applicable 1HD installations.

Power Capability: 150–200HP potential crank / flywheel power

Recommended Use: Responsive daily driver, touring, overlanding and fast-spool performance builds.

Engine Compatibility: Toyota 1HD-T / 1HD-FT / 1HD-FTE 4.2L Turbo Diesel

Important: Maximum turbo power capability is not a guaranteed engine output. Actual performance depends on engine condition, fuelling, boost pressure, intercooling, intake and exhaust flow and correct tuning / calibration.

Choose the Right Kinugawa Turbo for Your Land Cruiser

OFM4x4 offers six Kinugawa TD05H/TD06H turbo options for Toyota Land Cruiser 1HD diesel engines, allowing selection of the turbocharger based on the intended power target and driving characteristics.

This TD05H-16G is the recommended choice when fast response and everyday drivability are the priority.

Why Choose the TD05H-16G?

The TD05H-16G sits at the responsive end of the Kinugawa Toyota 1HD turbo range. Rather than using an oversized compressor purely to maximise peak airflow, the combination of the 16G compressor, TD05H turbine and compact 7cm turbine housing is designed to provide excellent response.

This makes the TD05H-16G particularly suitable for a heavy 4x4 such as the Land Cruiser, where usable torque and boost response can be more important than maximum dyno figures.

• Fast-spooling TD05H-16G configuration
• 150–200HP potential crank / flywheel capability
• Excellent choice for daily-driven Land Cruisers
• Well suited to touring and overland vehicles
• Strong choice where low-RPM response is important
• Suitable for moderate performance upgrades
• Multiple compressor and turbine wheel configurations available
• Multiple actuator spring pressures available
• CT26-style turbine inlet and outlet
• Oil and water-cooled

Engine & Vehicle Compatibility

Land Cruiser 80 Series – 1HD-T & 1HD-FT

For the Toyota Land Cruiser 80 Series, Kinugawa lists this turbo for 1991–1997 HDJ80 / HDJ81 / HDJ82 models equipped with the 1HD-T or 1HD-FT 4.2-litre turbo diesel.

It is designed as an upgrade for the following Toyota turbo references:

• 17201-17010
• 17201-17030

The CT26-style turbine housing is designed to bolt to the compatible factory exhaust manifold and dump pipe, reducing the amount of fabrication required compared with a completely different turbine housing format.

1HD-FTE Compatibility

Kinugawa also lists this TD05H-16G for the Toyota 1HD-FTE 4.2-litre turbo diesel.

For vehicles using the 17201-17040 turbo application, including the following:

• Toyota Land Cruiser HDJ78
• Toyota Land Cruiser HDJ79
• Toyota Land Cruiser HDJ100
• Toyota Land Cruiser HDJ105 / converted applications where applicable

Kinugawa advises confirming the required compressor housing configuration for the 1HD-FTE installation. The turbo can retain the performance 3-inch compressor housing where suitable, or the appropriate housing configuration can be selected for the application.

If ordering for a 1HD-FTE application, please confirm your vehicle model and current turbo configuration so the appropriate option can be supplied.

Technical Specifications

Available Configuration Options

The Kinugawa TD05H-16G can be configured with different compressor housing, compressor wheel, turbine wheel and actuator options. This allows the turbo to be tailored more closely to the intended driving style and engine setup.

Compressor Housing Options

• Anti-Surge
• Non Anti-Surge

The compressor housing has a 3-inch inlet and A/R .60 nozzle area.

The anti-surge housing provides a ported compressor inlet arrangement, while the non anti-surge option provides a conventional compressor cover configuration.

Compressor Wheel Options

• Cast 6+6
• Billet 6+6 – recommended where low-end torque and response are the priority
• Billet 11+0 – recommended where stronger top-end performance is the priority

The TD05H-16G compressor wheel measures 48.3 / 68.0mm.

Kinugawa specifically identifies the Billet 6+6 configuration with low-end torque and the Billet 11+0 configuration with top-end speed, allowing the same basic turbocharger to be tailored towards different driving characteristics.

Turbine Wheel Options

• 12 Blades STD
• 9 Blades STS
• 10 Blades STS 55

All options are based around the 49 / 57mm TD05H turbine wheel dimensions.

Turbine wheel design can affect spool characteristics, exhaust flow, backpressure and high-RPM performance, making the turbine wheel an important part of configuring the turbo for its intended use.

Spring / Actuator Pressure Options

The standard Kinugawa actuator is supplied at:

1.0 bar / 14.7 PSI – Default

Alternative actuator pressures available include:

• 0.3 bar
• 0.5 bar
• 0.8 bar
• 1.0 bar – Default
• 1.2 bar
• 1.5 bar
• 1.7 bar
• 2.0 bar

Important: The actuator spring pressure should be selected according to the engine specification, desired boost target and boost-control strategy. A higher actuator spring pressure does not by itself create safe additional engine power.

Cooling Type

Oil & Water Cooled

The TD05H-16G uses engine oil for bearing lubrication together with coolant circulation through the centre housing for additional thermal management.

How the Configuration Affects Turbo Response

Kinugawa identifies three principal factors that influence the driving characteristics of a turbocharger:

1. Turbine housing A/R – the most significant influence on spool characteristics
2. Turbine wheel design – affects inertia, exhaust flow and turbine efficiency
3. Compressor wheel design – affects airflow capacity, efficiency and the overall operating characteristics of the turbo

The compact 7cm / A/R .49 turbine housing used on this TD05H-16G is particularly relevant to its fast-spool character.

7cm Turbine Housing for Faster Response

The TD05H-16G uses a 7cm / A/R .49 turbine housing, compared with approximately 8cm / A/R .57 for the referenced stock CT26 configuration.

A smaller turbine housing generally increases exhaust-gas velocity through the turbine, allowing the turbocharger to respond sooner. The trade-off is that a smaller housing can ultimately restrict high-RPM flow compared with a larger turbine housing.

For the 16G's intended 150–200HP range, the 7cm housing complements the response-focused nature of the turbo particularly well.

48.3 / 68.0mm 16G Compressor

The TD05H-16G uses a 48.3mm inducer / 68.0mm exducer compressor wheel.

This represents a significant performance upgrade while remaining compact enough to support the responsive characteristics expected from the 16G configuration.

Customers can further tailor the compressor characteristics by choosing between:

• Cast 6+6
• Billet 6+6
• Billet 11+0

49 / 57mm TD05H Turbine

The turbine side uses a 49 / 57mm TD05H turbine wheel.

Three turbine designs are offered, allowing customers to select between the standard configuration and Kinugawa STS turbine wheel alternatives.

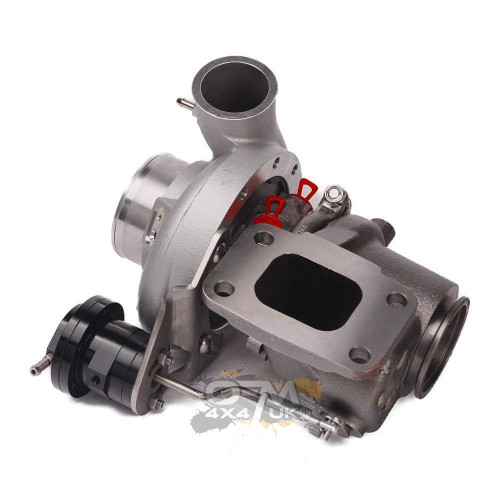

CT26-Style Bolt-On Turbine Housing

The turbine housing retains the Toyota CT26-style mounting arrangement:

• Toyota CT26 4-bolt turbine inlet
• Toyota CT26 4-bolt turbine outlet
• Internal wastegate

For compatible 1HD-T and 1HD-FT applications, this allows the turbo to bolt to the factory exhaust manifold and dump-pipe arrangement, reducing the fabrication normally associated with converting to a completely different turbo mounting system.

3-Inch Compressor Inlet

The performance compressor housing uses a substantial 3-inch inlet.

On applicable 1HD-T / 1HD-FT installations, the original compressor inlet / air-filter pipe will require modification or replacement to connect to the larger 3-inch inlet.

The larger compressor inlet helps reduce intake restriction and allows the upgraded compressor to receive the airflow required for increased performance.

Journal Bearing with 360° Performance Thrust Bearing

The TD05H-16G uses a journal bearing centre section with a 360-degree performance thrust bearing.

The 360-degree thrust arrangement is designed for performance turbocharger operation where increased boost and compressor loads can create greater axial loading on the rotating assembly.

Oil & Water Cooling

The turbocharger centre housing uses both oil and water cooling.

Engine oil provides lubrication to the journal bearing system, while coolant circulation assists with thermal management of the turbocharger centre housing.

Correct oil supply, coolant circulation and turbocharger installation procedures are essential for long-term reliability.

Up to 200HP Performance Capability

Kinugawa rates the TD05H-16G diesel configuration for approximately 150–200HP potential crank / flywheel power.

The manufacturer's maximum power figure is calculated from compressor-map choke flow and represents the potential airflow capability of the turbocharger rather than guaranteed vehicle output.

Actual engine performance will depend on:

• Fuel delivery
• Injection pump or ECU calibration
• Boost pressure
• Intercooler efficiency
• Intake airflow
• Exhaust system
• Engine condition
• Exhaust gas temperature
• Ambient conditions
• Supporting engine modifications

Ideal for a Responsive Land Cruiser Build

The TD05H-16G is particularly attractive for owners who want their Land Cruiser to feel stronger and more responsive without building the engine around an oversized high-horsepower turbo.

It is particularly well suited to:

• Daily driving
• Touring
• Overlanding
• Green-laning
• Off-road driving
• Moderate towing
• Vehicles running larger tyres
• Land Cruisers carrying touring equipment
• Drivers prioritising low-RPM response
• 150–200HP performance targets

TD05H-16G vs TD05H-18G

The next turbo in the range is the Kinugawa TD05H-18G, aimed at approximately 200–250HP.

Choose the TD05H-16G if:

• Your target is up to approximately 200HP
• Fast spool is the priority
• You want excellent everyday response
• You use the vehicle primarily for road, touring or off-road driving

Choose the TD05H-18G if:

• Your target is approximately 200–250HP
• You want greater airflow and top-end performance
• You want the most popular all-round performance option in the range

Supporting Modifications

Installing a larger turbocharger does not by itself safely produce the turbo's maximum potential power.

Depending on the desired output, supporting upgrades may include:

• Correct fuel system calibration
• Upgraded intercooler
• Free-flowing exhaust system
• Improved intake system
• Correct boost control
• Boost pressure monitoring
• Exhaust gas temperature monitoring
• Engine-condition checks
• Professional tuning / calibration

Professional tuning is strongly recommended after fitting a performance turbocharger.

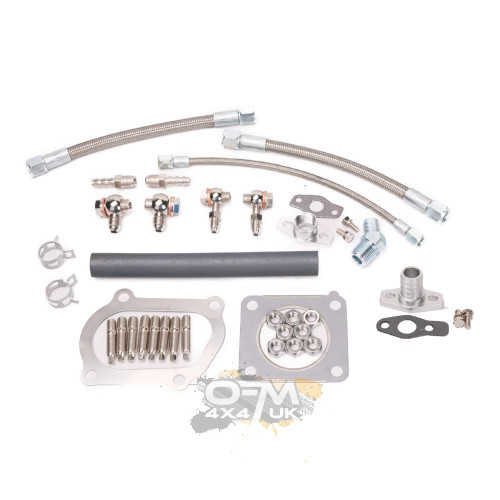

What’s Included

• 1 × Kinugawa TD05H-16G turbocharger
• 1 × Oil supply set
• 1 × Water coolant and return set
• 1 × Gasket set
• 1 × Kinugawa balance report with anti-counterfeit tag

Manufacturing & Balancing

The turbocharger is supplied brand new.

Kinugawa states that the turbocharger receives full balancing using Schenck MBRS equipment, and a balance report with anti-counterfeit identification is included with the turbocharger.

Installation Notes

• CT26-style turbine inlet and outlet arrangement
• Designed to fit the compatible factory exhaust manifold and dump pipe
• 3-inch compressor inlet may require intake / air-filter pipe modification
• 1HD-FTE applications should use the appropriate compressor housing configuration
• Oil and coolant lines must be installed correctly
• The turbocharger must be primed with clean engine oil before initial start-up
• Check all intake and exhaust connections for leaks after installation
• Verify boost pressure before operating the vehicle under full load
• Fuelling and boost control must be matched to the engine setup

Professional installation and tuning are strongly recommended.

Frequently Asked Questions

Q1: Which engines does the Kinugawa TD05H-16G fit?
A: Kinugawa lists this turbo for Toyota Land Cruiser 1HD-T, 1HD-FT and 1HD-FTE 4.2-litre turbo diesel engines.

Q2: Does it fit the Toyota Land Cruiser 80?
A: Yes. Kinugawa specifically lists the 1991–1997 HDJ80 / HDJ81 / HDJ82 with the 1HD-T or 1HD-FT engine.

Q3: Does the TD05H-16G fit the 1HD-FTE?
A: Yes. Kinugawa also lists the 1HD-FTE and references the 17201-17040 application used with HDJ78, HDJ79, HDJ100 and HDJ105 applications. The appropriate compressor housing configuration should be confirmed for the vehicle.

Q4: How much power can the TD05H-16G support?
A: Kinugawa rates the diesel 16G configuration for approximately 150–200HP potential crank / flywheel power. Actual output depends on the engine setup and tuning.

Q5: Is this the fastest-spooling option in the six-turbo range?
A: The TD05H-16G is the smallest and most response-focused option in this six-model Kinugawa Land Cruiser range and is our recommended choice where fast spool and daily drivability are the priorities.

Q6: What compressor housing options are available?
A: Anti-Surge and Non Anti-Surge compressor housing options are available.

Q7: What compressor wheel options are available?
A: Cast 6+6, Billet 6+6 and Billet 11+0 configurations are available.

Q8: Which compressor wheel is best for low-end torque?
A: Kinugawa identifies the Billet 6+6 configuration as the option focused towards low-end torque.

Q9: Which compressor wheel is best for top-end performance?
A: Kinugawa identifies the Billet 11+0 configuration as the option focused towards top-end speed.

Q10: What turbine wheel options are available?
A: The available configurations are 12 Blades STD, 9 Blades STS and 10 Blades STS 55.

Q11: What size is the compressor wheel?
A: The TD05H-16G compressor wheel measures 48.3 / 68.0mm.

Q12: What size is the turbine wheel?
A: The TD05H turbine wheel measures 49 / 57mm.

Q13: What size turbine housing does it use?
A: It uses a 7cm / A/R .49 turbine housing. Kinugawa compares this with approximately 8cm / A/R .57 for the referenced stock CT26 housing.

Q14: What size is the compressor inlet?
A: The compressor housing uses a 3-inch inlet.

Q15: Does the intake require modification?
A: On the applicable 1HD-T / 1HD-FT installation, the original compressor inlet / air-filter connection needs to be modified or replaced to suit the larger 3-inch inlet.

Q16: Does it bolt to the original exhaust manifold?
A: On compatible applications, yes. The turbine housing uses the Toyota CT26-style 4-bolt inlet.

Q17: Does it connect to the original-style dump pipe?
A: On compatible applications, yes. The turbine outlet retains the Toyota CT26-style 4-bolt arrangement.

Q18: What is the standard actuator pressure?
A: The standard/default actuator is 1.0 bar / 14.7 PSI.

Q19: What other actuator spring pressures are available?
A: Kinugawa offers 0.3, 0.5, 0.8, 1.2, 1.5, 1.7 and 2.0 bar alternatives in addition to the default 1.0 bar actuator.

Q20: Is the turbo oil or water-cooled?
A: Both. The TD05H-16G uses oil and water cooling.

Q21: What bearing system does it use?
A: It uses a journal bearing system with a 360-degree performance thrust bearing.

Q22: What comes with the turbo?
A: The set includes the turbocharger, oil supply set, water coolant and return set, gasket set and Kinugawa balance report with anti-counterfeit tag.

Q23: Which turbo should I choose if I want more than 200HP?
A: The TD05H-18G is the next step for approximately 200–250HP. Higher-power TD05H-20G, TD05H-16K, TD05H-18K and TD06H-25G options are also available.

Q24: Do I need tuning after fitting this turbo?
A: Yes. Correct fuelling, boost control, and calibration are essential when fitting a performance turbocharger. Professional tuning is strongly recommended.

Why Buy from OFM4x4.CO.UK

• Specialists in Toyota Land Cruiser performance upgrades
• Full six-model Kinugawa 1HD turbo range
• Options covering approximately 150HP through to 420HP builds
• Turbo options for 1HD-T, 1HD-FT and 1HD-FTE engines
• Choice of compressor housing configurations
• Choice of compressor wheel configurations
• Choice of turbine wheel configurations
• Multiple actuator spring pressures available
• Technical assistance when selecting the appropriate turbo configuration
• Supporting Land Cruiser performance upgrades available
• UK-based customer service
