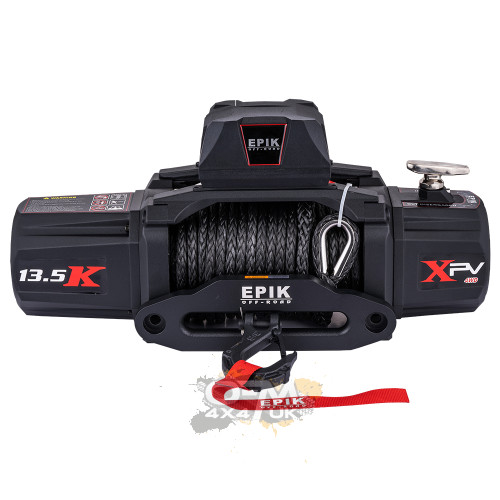

The Epik XPV Winch is designed for top-tier performance and reliability. This winch is perfect for heavy-duty applications with a rated line pull of 13,500 lbs (6,124 kgs). Featuring a sealed series-wound 12V DC motor, a 3-stage planetary gear train, and an automatic load-holding brake, the Epik PV winch ensures maximum efficiency and safety during operation.

Key Features

High-Performance Motor

• Motor: 12V DC, sealed series wound
• Rated Line Pull: 13,500lbs/6,124kgs single-line
• Gear Train: 3-stage planetary
• Gear Ratio: 218:1

Efficient Braking and Clutch System

• Braking: Automatic, 100% load holding
• Clutch: Rotate 90 degrees for easy operation

Electrical Controls and Cables

• Electrical Controls: 400A seal contactor
• Electric Cables: Copper 25mm²

Controllers

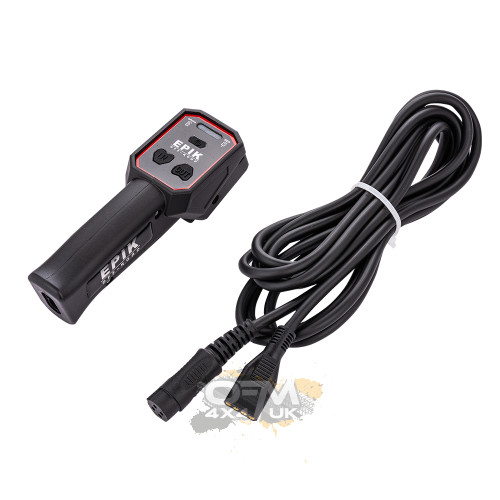

• Wired Controller: 5-pin, 12ft (3.7m) for reliable operation
• Wireless Remote: Included for convenient control

Synthetic Rope

• Synthetic Rope: 10mm x 25m for durability and ease of handling

Accessories

• Hawse Fairlead with Hook
• Control Unit
• Mounting Hardware
• Handsaver Strap

Performance Specifications

Line Pull

• 1st Layer: 13,500lbs/6,124kgs
• 2nd Layer: 10,010lbs/4,541kgs
• 3rd Layer: 9,300lbs/4,218kgs
• 4th Layer: 8,500lbs/3,856kgs

Line Speed and Amp Draw (1st layer of rope on the drum)

• No Load: 31.8 FPM/9.7 MPM at 75 AMP draw
• 4,000lbs/1,814kgs: 21.6 FPM/6.6 MPM at 195 AMP draw
• 6,000lbs/2,721kgs: 17.7 FPM/5.4 MPM at 240 AMP draw
• 8,000lbs/3,628kgs: 13.4 FPM/4.1 MPM at 291 AMP draw
• 10,000lbs/4,536kgs: 11.2 FPM/3.4 MPM at 335 AMP draw
• 13,500lbs/6,124kgs: 7.5 FPM/2.3 MPM at 375 AMP draw

Recommended Battery

• Battery: 650 CCA minimum for winching
• Battery Leads: 25mm², 72ft (1.83m)

Dimensions and Weight

• Winch Dimension: 22.0"x6.3"x10.1" (559x160x256mm)
• Mounting Bolt Pattern: 10"x4.5" (254mm x 114.3mm)
• Winch Weight: 57.3lbs/26kgs
• Gross Weight: 60.6lbs/27.5kgs
• Box Dimension: 24.0"x13.4"x10.2" (610x340x260mm)

Warranty

All Epik winches we supply come with a limited warranty of 1 year for electrical parts and 2 years for mechanical parts due to defects in materials and workmanship from the date of purchase.

Conclusion

Upgrade your off-road gear with the Epik XPV Winch. Its high performance, durable synthetic rope, and reliable braking system make it the perfect choice for any serious off-roader. With both wired and wireless controls, you can operate the winch with ease and confidence.
