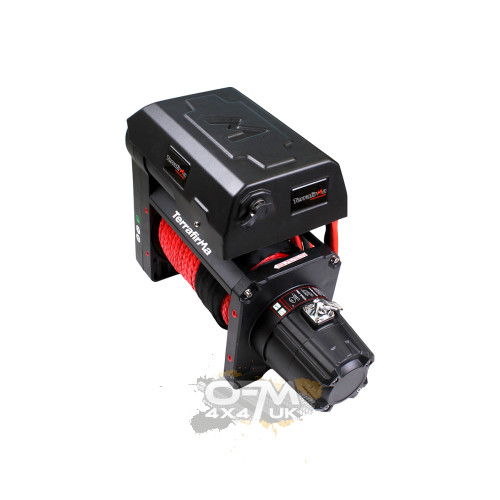

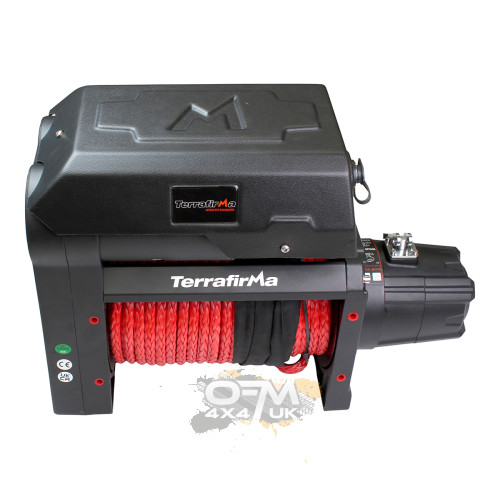

Terrafirma TM12000 Twin Motor High Speed Electric Winch (Synthetic Rope, TF3360)

Pull harder. Recover faster. The Terrafirma TM12000 Twin Motor High Speed Electric Winch (TF3360) is built for demanding 4x4 recoveries, off-road racing and overland rigs carrying heavy loads. With a 12,000 lb (5,443 kg) rated pull, twin 6.6 hp series-wound motors, a 3-stage planetary gearbox and 50 m of lightweight synthetic rope, this winch delivers the speed, strength and reliability needed when it matters most.

Main Features

• 12,000 lb (5,443 kg) rated line pull: suitable for fully equipped expedition vehicles and heavy recovery duty.
• Twin 6.6 hp motors: double the pulling power and faster line speed than conventional winches.
• High-speed planetary gearing: strong 3-stage gearbox optimised for rapid spooling.
• 50 m synthetic rope: lightweight, safer handling and less risk under tension compared to wire cable.
• Automatic in-drum brake: reliable load holding on slopes and during pauses in recovery.
• Wireless + wired control: operate from inside the cab or at a safe distance; includes wireless remotes and a plug-in hand controller.
• Sealed solenoid & contactor pack: protected electrics for mud, water and dust resistance.
• Hawse fairlead: smooth rope guidance, reduces wear and protects the synthetic line.
• Corrosion-resistant finish: tough housing for harsh UK and EU off-road conditions.

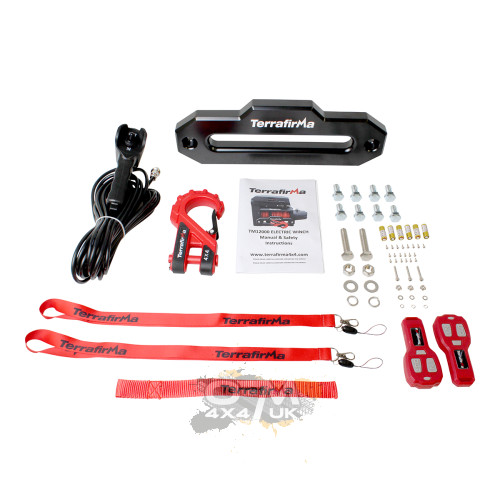

What’s Included

• Terrafirma TM12000 twin-motor winch (12V, TF3360)
• 50 m synthetic rope with hook
• Hawse fairlead
• 2 × wireless remotes
• 1 × wired hand controller

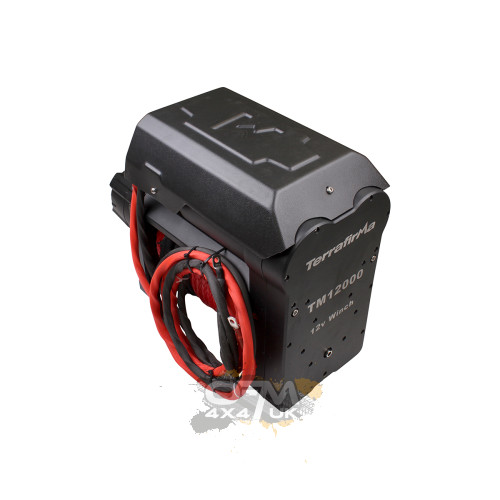

• Heavy-duty solenoid/contactor pack
• Main power cables
• Mounting hardware (universal)
• Basic installation guide

Note: bumper or winch tray not included. Ensure your bumper is winch-rated and matches the TM12000 mounting pattern.

Technical Specifications

Installation & Electrical Notes

• Bumper/tray: requires a winch-rated bumper or tray with correct pattern and rope lead alignment.
• Battery: minimum 650–800 CCA recommended. Dual batteries are preferred for heavy or repeated pulls.
• Cabling: heavy-gauge leads included; keep runs short, earth properly, and add an isolator for safety.
• Rope care: pre-tension synthetic rope under steady load before first use; clean and inspect after recoveries.

Perfect For

• Overland and expedition vehicles
• 4x4s with full kit (steel bumpers, roof tents, gear)
• Motorsport and challenge events need fast recovery
• Farm, forestry, industrial and utility recovery

FAQs

1) Why choose twin motors?
They provide faster line speed under load and improved pulling performance compared with single-motor winches.

2) How safe is synthetic rope?
It’s lighter, easier to handle and safer under tension. Always use a winch blanket and rated shackles.

3) What remotes are included?
Two wireless remotes and one wired controller, giving flexibility in all conditions.

4) Can I mount this on a standard bumper?
No — it requires a winch tray or bumper rated for a 12,000 lb load and matching bolt pattern.

5) Will my standard alternator cope?
High draw under load demands a healthy alternator and a strong battery. Dual battery systems are recommended for frequent recovery work.

6) How do I maintain it?
Clean the rope, check the terminals, test the winch monthly, and service the gearbox/brake periodically per Terrafirma’s guidelines.

7) Does it have a brake?
Yes — automatic in-drum brake for secure load holding.

8) Is it waterproof?
It features sealed electrics and a solenoid pack; splash-resistant for off-road use. Avoid full submersion where possible.
