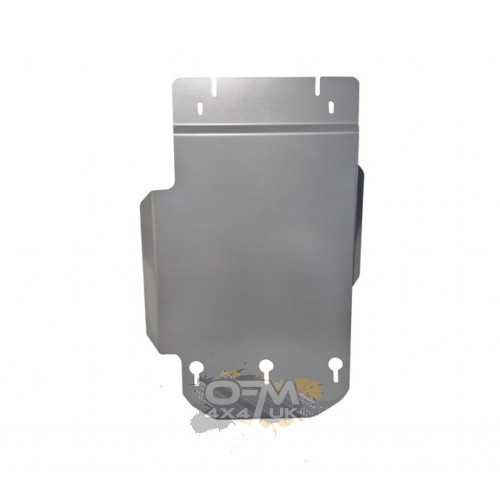

Aluminium Gearbox & Transfer Case Guard for Toyota Land Cruiser 250 2024-On – 4mm

This heavy-duty Aluminium Gearbox & Transfer Case Guard is designed to protect the central drivetrain of the Toyota Land Cruiser 250 from rocks, deep ruts, raised ground, branches and direct underside impacts encountered during demanding off-road driving.

Manufactured from substantial 4mm aluminium plate, the guard provides protection for both the gearbox and transfer case while keeping additional vehicle weight lower than a comparable heavy-duty steel protection system.

The main protection shield is manufactured from aluminium, while the mounting brackets are made from steel to provide strong and secure attachment points. External aluminium reinforcement sections increase resistance to impact and deformation, while the powder-coated finish provides additional protection against corrosion and environmental exposure.

This makes the guard particularly suitable for touring, overland and expedition Land Cruiser 250 builds where effective drivetrain protection is required without adding unnecessary weight.

Vehicle Compatibility: Toyota Land Cruiser 250 2024-On

Alternative Market Name: Toyota Land Cruiser Prado 250

Engine Compatibility: All engine variants

Build a complete Land Cruiser 250 underbody protection package:
Aluminium Radiator Guard for Toyota Land Cruiser 250 – 4mm
Aluminium Engine & Sump Guard for Toyota Land Cruiser 250 – 4mm
Aluminium Gearbox & Transfer Case Guard for Toyota Land Cruiser 250 – 4mm
Aluminium Complete Underbody Protection Kit for Toyota Land Cruiser 250 – 4mm
Steel Radiator Guard for Toyota Land Cruiser 250 – 3mm
Steel Engine & Front Differential Guard for Toyota Land Cruiser 250 – 3mm
Steel Gearbox & Transfer Case Guard for Toyota Land Cruiser 250 – 3mm
Steel Complete Underbody Protection Kit for Toyota Land Cruiser 250 – 3mm

Explore more underbody protection:
Steel & Aluminium Underbody Protection

Key Features

• Designed for Toyota Land Cruiser 250
• Vehicle application: 2024-On
• Also commonly referred to as Toyota Land Cruiser Prado 250 in some markets
• Suitable for all engine variants
• Protects both gearbox and transfer case
• Manufactured from heavy-duty 4mm aluminium plate
• External aluminium reinforcement sections improve impact resistance
• Steel mounting brackets provide strong attachment points
• Powder-coated finish for additional corrosion protection
• Approximate weight: 5kg
• Designed around factory mounting locations
• Mounting screws, nuts, clips and fastening accessories included
• No structural vehicle modification normally required
• 24-month manufacturer warranty
• Ideal for off-road, touring, overland and expedition use

Vehicle Compatibility

Technical Overview

Gearbox & Transfer Case Protection

This protection plate shields two critical drivetrain components located beneath the centre of the Land Cruiser 250: the gearbox and transfer case.

These components can become exposed when the vehicle crosses deep ruts, rocky terrain, raised centre sections and hard obstacles positioned between the axles.

A direct strike to either casing can result in deformation, cracking or fluid loss and may leave the vehicle immobilised in difficult or remote terrain.

This aluminium guard creates a strong protective barrier beneath the drivetrain, helping absorb and distribute impacts before they reach the gearbox or transfer case directly.

Why Protect the Gearbox?

The gearbox is one of the most complex and expensive drivetrain components on the vehicle.

Direct impact from rocks or raised terrain can damage the transmission casing, mounting points or surrounding components and may result in lubricant loss or transmission failure.

A dedicated underbody guard significantly reduces direct exposure to these hazards.

Why Protect the Transfer Case?

The transfer case is a critical part of the Land Cruiser 250 four-wheel-drive system, distributing drive between the front and rear axles.

Because it is positioned beneath the vehicle, it can become vulnerable during technical off-road driving, particularly on rocky tracks and deep-rut crossings.

Protection of the transfer case helps reduce the risk of damage that could compromise four-wheel-drive operation or leave the vehicle unable to continue.

4mm Aluminium Drivetrain Protection

The main guard is manufactured from 4mm thick aluminium plate.

This provides substantial impact protection while helping keep additional vehicle weight significantly lower than a comparable steel guard.

At approximately 5kg, the guard is particularly attractive for Land Cruiser 250 builds already carrying substantial additional equipment.

Typical additional accessories may include:

• Heavy-duty front bumper
• Winch
• Roof rack
• Rooftop tent
• Recovery equipment
• Camping equipment
• Auxiliary fuel or water storage
• Larger off-road wheels and tyres

Reducing weight in individual armour components can make a useful difference to the complete vehicle build.

Steel Mounting Brackets

The main protection shield is aluminium, while the mounting brackets are manufactured from steel.

This combination allows the main shield to benefit from aluminium's lower weight and corrosion resistance while maintaining strong steel attachment points where the guard connects to the vehicle.

All required screws, nuts, clips and fastening accessories are supplied.

Externally Reinforced Aluminium Design

The exterior of the gearbox guard incorporates additional aluminium reinforcement sections.

These reinforcements increase rigidity and help distribute impact loads across a larger area of the protection plate rather than concentrating force at a single point.

This helps improve resistance to deformation when the guard contacts rocks, hard trail obstacles or raised ground.

Powder-Coated Finish

The complete protection assembly is powder coated to provide additional protection against environmental exposure and corrosion.

This is especially useful on vehicles regularly exposed to:

• Mud and wet soil
• Standing water
• Road salt
• Wet vegetation
• Snow and winter conditions
• Year-round UK weather

Regular cleaning after heavy off-road and winter use is recommended to maximise service life.

Complete Land Cruiser 250 Aluminium Protection System

This gearbox and transfer case guard forms the rear section of the complete 4mm aluminium underbody protection system available for the Toyota Land Cruiser 250.

• Aluminium Radiator Guard – Land Cruiser 250 – 4mm
• Aluminium Engine & Sump Guard – Land Cruiser 250 – 4mm
• Aluminium Gearbox & Transfer Case Guard – Land Cruiser 250 – 4mm

Together, the three protection sections cover the major vulnerable areas underneath the vehicle from the radiator area through to the transfer case.

Complete Aluminium Protection Kit

Customers planning to install all three aluminium protection sections can purchase the complete package rather than ordering each guard individually.

Aluminium Complete Underbody Protection Kit for Toyota Land Cruiser 250 – 4mm

The complete package includes:

• Aluminium Radiator Guard
• Aluminium Engine & Sump Guard
• Aluminium Gearbox & Transfer Case Guard

The complete package provides a convenient and more cost-effective option for customers intending to install the full protection system.

Steel Protection Alternative

For customers who prefer traditional heavy-duty steel armour, the Land Cruiser 250 is also supported by a complete 3mm steel underbody protection range.

• Steel Radiator Guard – Land Cruiser 250 – 3mm
• Steel Engine & Front Differential Guard – Land Cruiser 250 – 3mm
• Steel Gearbox & Transfer Case Guard – Land Cruiser 250 – 3mm
• Steel Complete Underbody Protection Kit – Land Cruiser 250 – 3mm

Aluminium vs Steel Gearbox Protection

The correct material depends on the intended terrain, overall vehicle build weight and how the Land Cruiser 250 will be used.

Ideal Uses

• Overlanding
• Expedition travel
• Green-laning
• Rocky tracks
• Deep ruts
• Forestry and agricultural roads
• Remote touring
• Water crossings with hidden obstacles
• Working vehicles
• Daily-driven Land Cruiser 250 builds requiring additional drivetrain protection

What's Included

• 1 × 4mm aluminium gearbox & transfer case guard
• Steel mounting brackets
• Mounting screws / bolts
• Nuts
• Clips
• Required fastening accessories
• Installation instructions

Recommended Supporting Upgrades

• Aluminium Radiator Guard for Toyota Land Cruiser 250 – 4mm
• Aluminium Engine & Sump Guard for Toyota Land Cruiser 250 – 4mm
• Aluminium Complete Underbody Protection Kit for Toyota Land Cruiser 250 – 4mm
• Steel Radiator Guard for Toyota Land Cruiser 250 – 3mm
• Steel Engine & Front Differential Guard for Toyota Land Cruiser 250 – 3mm
• Steel Gearbox & Transfer Case Guard for Toyota Land Cruiser 250 – 3mm
• Rock sliders / heavy-duty side protection
• Recovery points
• Suspension upgrades
• Off-road wheels and tyres
• Raised air intake / snorkel

Installation

• Vehicle-specific installation for Toyota Land Cruiser 250
• Steel mounting brackets supplied
• Designed around factory mounting holes
• No structural vehicle alteration should normally be required
• Required mounting hardware is included
• Installation instructions are supplied
• Install all fixings loosely before final alignment and tightening
• Check clearance around gearbox, transfer case, exhaust and moving drivetrain components
• Re-check mounting hardware after initial off-road use
• Professional installation is recommended where the vehicle has previous underbody modifications

Estimated fitting time: approximately 1–2 hours depending on vehicle specification and workshop equipment.

Warranty

This underbody protection guard is supplied with a 24-month manufacturer's warranty.

FAQs

Q1: What vehicle does this aluminium gearbox guard fit?
A: It is designed for Toyota Land Cruiser 250 models manufactured from 2024 onwards.

Q2: Is this also suitable for the Toyota Prado 250?
A: Yes. The Land Cruiser 250 is also commonly referred to as the Prado 250 in some international markets.

Q3: What does this guard protect?
A: It protects both the gearbox and transfer case against underside impacts from rocks, debris and uneven terrain.

Q4: How thick is the aluminium?
A: The main protection plate is manufactured from 4mm thick aluminium.

Q5: How much does the guard weigh?
A: The guard weighs approximately 5kg.

Q6: Does it fit all Land Cruiser 250 engine variants?
A: Yes. The application is listed for all engine variants.

Q7: Are the mounting brackets aluminium?
A: No. The main protection shield is aluminium while the mounting brackets are manufactured from steel.

Q8: Is the guard reinforced?
A: Yes. External aluminium reinforcement sections increase resistance to impact and deformation.

Q9: Is the guard powder coated?
A: Yes. The protection assembly is powder coated to provide additional corrosion protection.

Q10: Are the mounting components included?
A: Yes. Screws, nuts, clips and all required fastening accessories are supplied.

Q11: Does installation require drilling?
A: The guard is designed around factory mounting holes, so structural vehicle modification should not normally be required.

Q12: Does this guard require the aluminium engine guard?
A: The supplier does not state that the Land Cruiser 250 aluminium gearbox & transfer case guard requires the aluminium engine guard, so it is not listed as a mandatory installation dependency.

Q13: Is a matching aluminium radiator guard available?
A: Yes. A matching 4mm aluminium radiator guard is available for the Land Cruiser 250.

Q14: Is a matching aluminium engine & sump guard available?
A: Yes. A matching 4mm aluminium engine & sump guard is available.

Q15: Can all three aluminium guards be purchased together?
A: Yes. A complete aluminium underbody protection kit is available containing the radiator, engine/sump and gearbox/transfer case guards.

Q16: Is a steel alternative available?
A: Yes. A complete 3mm steel underbody protection range is also available for the Land Cruiser 250.
