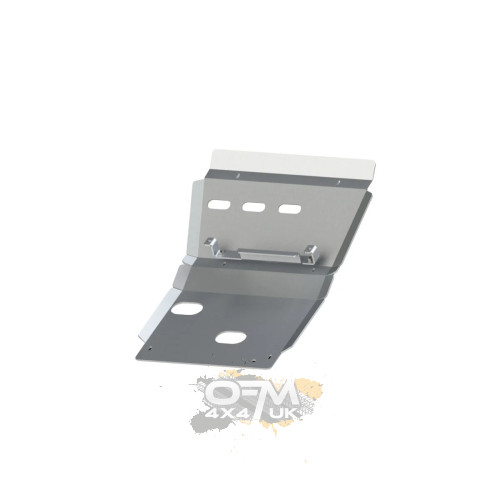

Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser Prado 120 J120 / J125 Diesel 2002–2009 – 6mm

Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser Prado 120 J120 / J125 Diesel 2002–2009 – 6mm

The Fabryka 4x4 Aluminium Engine & Sump Guard is a heavy-duty, vehicle-specific front underbody protection plate for Toyota Land Cruiser Prado 120 Series J120 and J125 diesel models manufactured from 2002 to 2009.

Designed for vehicles retaining the original / OEM front bumper, the guard provides substantial protection beneath the engine and sump area against rocks, deep ruts, raised ground, mud, branches and other obstacles encountered during off-road driving.

Manufactured from substantial 6mm aluminium plate, it combines strong underbody protection with the lower weight and excellent corrosion resistance associated with aluminium armour.

The guard is precision laser cut, press-brake formed and hand finished by Fabryka 4x4 to provide accurate vehicle-specific fitment and durable protection for demanding off-road, touring and expedition use.

Vehicle Compatibility: Toyota Land Cruiser Prado 120 Series 2002–2009

Chassis Compatibility: J120 / J125

Body Compatibility: J120 5-door long-wheelbase and J125 3-door short-wheelbase

Engine Compatibility: Diesel

Front Bumper Compatibility: Original / OEM front bumper

Product Code: OLH

Build a complete Fabryka 4x4 aluminium underbody protection package:
Fabryka 4x4 Aluminium Engine & Sump Guard – J120 / J125 Diesel – 6mm
Fabryka 4x4 Aluminium Gearbox & Transfer Case Guard – J120 / J125 – 6mm
Fabryka 4x4 Aluminium Fuel Tank Guard – J120 5-Door LWB – 6mm

Existing steel protection alternatives:
Steel Engine & Sump Guard for Toyota Land Cruiser J120 2002–2009
Steel Gearbox Guard for Toyota Land Cruiser J120 2002–2009

Also available in the existing Land Cruiser 120 underbody protection range:
Steel fuel tank protection for both 5-door and 3-door body configurations, plus existing aluminium engine and gearbox protection options.

Explore the complete underbody protection range:
Steel & Aluminium Underbody Protection

Key Features

• Designed for Toyota Land Cruiser Prado 120 Series diesel models
• Fits J120 and J125 chassis variants
• Vehicle application: 2002–2009
• J120: 5-door / long-wheelbase
• J125: 3-door / short-wheelbase
• Designed for vehicles retaining the original / OEM front bumper
• Protects the engine, sump and vulnerable front underside
• Manufactured from heavy-duty 6mm aluminium plate
• Precision laser-cut construction
• Press-brake formed for accurate vehicle-specific fitment
• Hand finished during manufacture
• Required mounting components included
• Removable when additional service access is required
• Excellent natural corrosion resistance
• Suitable for green-laning, overlanding, expedition and serious off-road use

Vehicle Compatibility

Important J120 / J125 Fitment Information

This guard is specifically listed for both J120 and J125 versions of the Toyota Land Cruiser Prado 120 Series.

The chassis designations should not be confused with wheelbase length:

• J120 – 5-door / long-wheelbase model
• J125 – 3-door / short-wheelbase model

This particular engine guard fits both configurations because the protected front engine area is shared for the stated diesel application.

Other underbody components, especially fuel tank protection, can differ between body lengths. Always select the correct J120 or J125-specific product where stated.

Important Original Bumper Compatibility

This version is designed for vehicles fitted with the original Toyota front bumper.

The shape and forward mounting arrangement of an engine protection plate can differ when an aftermarket steel winch bumper or other replacement front bumper is fitted.

If your Land Cruiser has a non-standard front bumper, confirm compatibility before ordering.

Technical Overview

Heavy-Duty Engine & Sump Protection

The engine sump and lower engine area are among the most vulnerable components underneath a Land Cruiser when driving across difficult terrain.

Rocks, raised centre sections, deep ruts and hidden obstacles can strike the underside of the vehicle directly. A significant impact to the sump can cause deformation, cracking or engine oil loss.

Loss of engine oil can quickly result in serious mechanical damage if the engine continues to operate.

The Fabryka 4x4 6mm aluminium engine guard creates a substantial protective barrier underneath the engine and sump, helping distribute impacts across the protection plate before they reach critical mechanical components.

6mm Aluminium Construction

The guard is manufactured from substantial 6mm aluminium plate, considerably thicker than many lightweight cosmetic undertrays.

The material is intended to provide functional off-road protection while retaining the advantages of aluminium construction.

• Strong impact resistance
• Lower weight than comparable heavy steel armour
• Excellent natural resistance to corrosion
• Suitable for wet and muddy environments
• Well suited to vehicles used for touring and expedition travel

Precision Laser-Cut Construction

The aluminium plate is precision laser cut during production.

This manufacturing process allows the overall profile, mounting locations and detailed openings to be produced accurately and consistently for vehicle-specific fitment.

Press-Brake Formed & Hand Finished

After laser cutting, the protection plate is formed using a press brake to create the required angles, structural profile and mounting geometry.

The guard is then hand finished as part of the Fabryka 4x4 manufacturing process.

This combination of modern fabrication and manual finishing produces a heavy-duty protection plate designed around the Toyota Land Cruiser 120 Series underside.

Protection Against Rocks, Ruts & Trail Obstacles

The guard is designed to reduce exposure of the engine underside to common off-road hazards including:

• Rocks and exposed stone
• Deep wheel ruts
• Raised centre sections
• Tree roots
• Branches
• Mud and trail debris
• Hidden obstacles during water crossings
• Uneven forestry tracks
• Agricultural roads

Build a Complete Fabryka 4x4 Aluminium Protection System

This 6mm engine guard forms the front section of the Fabryka 4x4 aluminium underbody protection range for the Toyota Land Cruiser Prado 120 Series.

For broader protection, it can be combined with the following vehicle-specific guards:

• Fabryka 4x4 6mm Aluminium Engine & Sump Guard – J120 / J125 – this product
• Fabryka 4x4 6mm Aluminium Gearbox & Transfer Case Guard – J120 / J125
• Fabryka 4x4 6mm Aluminium Fuel Tank Guard – J120 5-Door / LWB

Important: the Fabryka 4x4 fuel tank guard is listed for J120 only, so it should not automatically be assumed compatible with the J125 short-wheelbase vehicle.

J120 5-Door / Long-Wheelbase Protection

Owners of the J120 5-door long-wheelbase Land Cruiser can build a wider aluminium protection package using:

• This 6mm aluminium engine & sump guard
• 6mm aluminium gearbox & transfer case guard
• 6mm aluminium fuel tank guard

This provides protection across the engine, sump, transmission, transfer case and fuel tank areas.

J125 3-Door / Short-Wheelbase Protection

The J125 3-door short-wheelbase version can use this engine guard together with the matching J120/J125 gearbox and transfer case protection.

• This 6mm aluminium engine & sump guard
• 6mm aluminium gearbox & transfer case guard

The upcoming Fabryka 4x4 fuel tank guard is listed specifically for J120 and therefore should not be advertised as J125-compatible without separate manufacturer confirmation.

Existing Steel Land Cruiser 120 Protection

OFM4x4 also offers an existing range of steel underbody protection for the Land Cruiser 120 Series.

• Steel Engine & Sump Guard for Toyota Land Cruiser J120 2002–2009
• Steel Gearbox Guard for Toyota Land Cruiser J120 2002–2009

Separate steel fuel tank guards are also available for the different 3-door and 5-door body configurations.

Fabryka 4x4 6mm Aluminium vs Steel Protection

The most suitable option depends on vehicle use, overall accessory load and whether minimising additional weight is important to the build.

Ideal Uses

• Green-laning
• Overlanding
• Expedition travel
• Rocky tracks
• Deep ruts
• Mountain tracks
• Forestry roads
• Agricultural access roads
• Remote touring
• Water crossings with hidden obstacles
• Working 4x4 vehicles
• Land Cruiser 120 Series builds requiring substantial engine protection

What’s Included

• 1 × Fabryka 4x4 6mm aluminium engine & sump guard
• Required mounting components

Product Code: OLH

Note: Fabryka 4x4 advises that the finished product may differ in some minor details from the photographs as part of ongoing product development.

Installation

• Vehicle-specific fitment for Toyota Land Cruiser Prado J120 / J125
• Diesel application
• Designed for the original / OEM front bumper
• Required mounting components supplied
• Position all mounting points before final tightening
• Check clearance around the engine, sump, steering and surrounding components
• Re-check mounting hardware after initial off-road use
• Guard can be removed when additional underside access is required

Professional installation is recommended where the vehicle has an aftermarket bumper, modified front crossmember, non-standard drivetrain components or previous underbody modifications.

FAQs

Q1: What vehicles does this Fabryka 4x4 engine guard fit?
A: It is designed for Toyota Land Cruiser Prado 120 Series J120 and J125 diesel models manufactured between 2002 and 2009.

Q2: Does this fit both J120 and J125?
A: Yes. Fabryka 4x4 specifically lists this engine protection plate for LCJ120/125.

Q3: Which is the long-wheelbase model, J120 or J125?
A: J120 is generally the 5-door long-wheelbase version, while J125 is the shorter 3-door version.

Q4: Does it fit petrol models?
A: This particular Fabryka 4x4 application is specified for diesel Land Cruiser J120/J125 vehicles.

Q5: Does this fit vehicles with the factory front bumper?
A: Yes. This version is specifically designed for vehicles retaining the original / OEM front bumper.

Q6: Will it fit an aftermarket steel bumper?
A: Compatibility should be confirmed before ordering because this guard is specifically designed around the original front bumper configuration.

Q7: How thick is the aluminium?
A: The protection plate is manufactured from 6mm thick aluminium.

Q8: What does the guard protect?
A: It is designed to protect the engine, sump and vulnerable front underside against rocks, mud and other off-road obstacles.

Q9: How is the guard manufactured?
A: The aluminium plate is precision laser cut, press-brake formed and then hand finished.

Q10: Is mounting hardware included?
A: Yes. The required installation components are included with the guard.

Q11: Is a matching gearbox and transfer case guard available?
A: Yes. A matching Fabryka 4x4 6mm aluminium gearbox and transfer case guard is available for both J120 and J125 models.

Q12: Is a matching fuel tank guard available?
A: Yes, but the Fabryka 4x4 fuel tank guard in this range is specifically listed for the J120 application rather than J120/J125 combined.

Q13: Can I build a complete J120 aluminium protection system?
A: Yes. The J120 can combine this engine guard with the matching gearbox/transfer case guard and the J120-specific aluminium fuel tank guard.

Q14: Can I build a J125 aluminium protection system?
A: This engine guard and the upcoming gearbox/transfer case guard are both listed for J125. The J120-specific fuel tank guard should not be assumed to fit the J125.

Q15: Are steel alternatives available?
A: Yes. OFM4x4 also offers steel engine, gearbox and fuel tank protection options for the Land Cruiser 120 Series.

Q16: Is aluminium suitable for serious off-road use?
A: Yes. The substantial 6mm aluminium construction is intended to protect vulnerable components during demanding off-road, touring, overland and expedition use.
