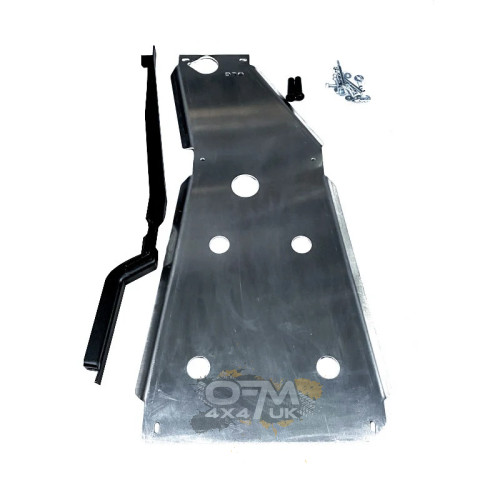

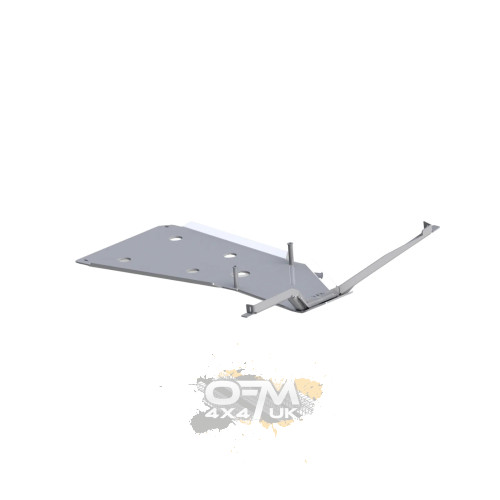

Fabryka 4x4 Aluminium Gearbox & Transfer Case Guard for Toyota Land Cruiser Prado 120 J120 / J125 2002–2009 – 6mm

The Fabryka 4x4 Aluminium Gearbox & Transfer Case Guard is a heavy-duty, vehicle-specific underbody protection plate designed for the Toyota Land Cruiser Prado 120 Series J120 and J125 manufactured from 2002 to 2009.

Manufactured from substantial 6mm aluminium plate, the guard protects both the gearbox and transfer case from rocks, deep ruts, raised ground, mud, branches and other obstacles encountered during off-road driving, green-laning, overlanding and expedition travel.

The protection plate is precision laser cut, press-brake formed and hand finished by Fabryka 4x4 to provide accurate vehicle-specific fitment and robust drivetrain protection.

Vehicle Compatibility: Toyota Land Cruiser Prado 120 Series 2002–2009

Chassis Compatibility: J120 / J125

Body Compatibility: J120 5-door long-wheelbase and J125 3-door short-wheelbase

Protection Area: Gearbox and transfer case

Product Code: OLG

Build a complete Fabryka 4x4 aluminium underbody protection package:
Fabryka 4x4 Aluminium Engine & Sump Guard – J120 / J125 Diesel – 6mm
Fabryka 4x4 Aluminium Gearbox & Transfer Case Guard – J120 / J125 – 6mm
Fabryka 4x4 Aluminium Fuel Tank Guard – J120 5-Door LWB – 6mm

Existing steel protection alternatives:
Steel Engine & Sump Guard for Toyota Land Cruiser J120 2002–2009
Steel Gearbox Guard for Toyota Land Cruiser J120 2002–2009
Steel Fuel Tank Guard for Toyota Land Cruiser J120 5-Door 2002–2009
Steel Fuel Tank Guard for Toyota Land Cruiser 120 3-Door 2002–2009

Existing aluminium protection alternatives:
4mm Aluminium Engine & Sump Guard for Toyota Land Cruiser Prado 120
4mm Aluminium Gearbox Guard for Toyota Land Cruiser Prado 120

Explore the complete underbody protection range:
Steel & Aluminium Underbody Protection

Key Features

• Designed for Toyota Land Cruiser Prado J120 and J125
• Vehicle application: 2002–2009
• J120: 5-door / long-wheelbase
• J125: 3-door / short-wheelbase
• Protects both gearbox and transfer case
• Manufactured from heavy-duty 6mm aluminium plate
• Precision laser-cut construction
• Press-brake formed for vehicle-specific fitment
• Hand finished during manufacture
• Required mounting components included
• Designed to be removable when drivetrain servicing requires access
• Excellent natural corrosion resistance
• Suitable for green-laning, overlanding, expedition and serious off-road use

Vehicle Compatibility

Important J120 / J125 Fitment Information

This Fabryka 4x4 drivetrain guard is specifically listed for both LCJ120 and LCJ125, so it can be used across both main body configurations of the Prado 120 Series.

• J120 – 5-door / long-wheelbase
• J125 – 3-door / short-wheelbase

This differs from the Fabryka 4x4 fuel tank guard in the same range, which is specifically listed for J120 only.

For this gearbox and transfer case protection plate, both J120 and J125 are supported by the manufacturer.

Technical Overview

Gearbox Protection

The gearbox is one of the most valuable drivetrain components underneath the Land Cruiser Prado 120 Series and can become vulnerable when the vehicle is driven across rocky tracks, deep ruts and uneven terrain.

Raised centre sections, exposed stone and hidden obstacles can strike the transmission casing directly. Significant impact damage can potentially lead to deformation, cracking, fluid loss or expensive drivetrain repairs.

The Fabryka 4x4 aluminium guard creates a substantial protective barrier beneath the gearbox, reducing direct exposure to these hazards.

Transfer Case Protection

The transfer case is a critical part of the Land Cruiser four-wheel-drive system, transmitting power between the front and rear driveline.

Because it sits underneath the centre of the vehicle, it can become exposed when crossing deep ruts, rocks and raised terrain.

Protecting the transfer case is particularly important on vehicles used in remote locations where drivetrain damage could leave the vehicle immobilised far from normal recovery access.

Combined Gearbox & Transfer Case Protection

Rather than protecting only one drivetrain component, this Fabryka 4x4 plate provides coverage for both the gearbox and transfer case.

This gives the centre underside of the vehicle broader protection against direct impacts and makes it a useful addition to vehicles used regularly on technical terrain.

Combined protection is particularly valuable when crossing:

• Deep ruts
• Rocky tracks
• Raised track centres
• Mountain trails
• Forestry roads
• Uneven agricultural tracks

Heavy-Duty 6mm Aluminium Construction

The guard is manufactured from substantial 6mm aluminium plate.

This considerable material thickness provides serious protection for the transmission and transfer case while retaining the advantages associated with aluminium underbody armour.

• Strong impact resistance
• Lower weight than comparable heavy steel armour
• Excellent natural corrosion resistance
• Suitable for wet, muddy and exposed environments
• Particularly suitable for touring and expedition vehicle builds

Precision Laser-Cut Construction

The aluminium plate is precision laser cut during production, allowing accurate mounting locations, external profile and detailed features to be reproduced consistently.

This is especially important for drivetrain protection because the plate must fit accurately beneath the gearbox and transfer case while maintaining suitable clearance around surrounding components.

Press-Brake Formed & Hand Finished

Following laser cutting, the aluminium plate is shaped using a press brake to create the required profile and structural geometry.

The guard is then hand finished during manufacture.

This combination of modern fabrication methods and manual finishing produces a vehicle-specific protection plate designed around the Toyota Land Cruiser J120 / J125 underbody.

Protection Against Common Off-Road Hazards

The gearbox and transfer case guard helps reduce exposure to:

• Rocks and exposed stone
• Deep wheel ruts
• Raised centre sections
• Tree roots
• Branches
• Mud and trail debris
• Hidden obstacles during water crossings
• Forestry tracks
• Agricultural roads

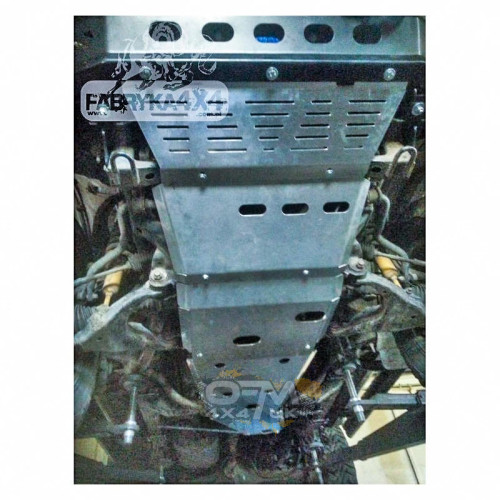

Complete Fabryka 4x4 Aluminium Protection System

This gearbox and transfer case guard forms the centre drivetrain section of the Fabryka 4x4 aluminium protection range for the Land Cruiser Prado 120 Series.

• 6mm Aluminium Engine & Sump Guard – J120 / J125 Diesel
• 6mm Aluminium Gearbox & Transfer Case Guard – J120 / J125 – this product
• 6mm Aluminium Fuel Tank Guard – J120 5-Door / LWB

J120 5-Door / Long-Wheelbase Protection Package

For the J120 5-door / long-wheelbase model, this gearbox and transfer case guard can be combined with both the front engine protection and the J120-specific fuel tank guard.

• Fabryka 4x4 Aluminium Engine & Sump Guard
• Fabryka 4x4 Aluminium Gearbox & Transfer Case Guard
• Fabryka 4x4 Aluminium Fuel Tank Guard – J120

This gives the J120 broad protection across the front, central drivetrain and fuel tank areas.

J125 3-Door / Short-Wheelbase Protection

The J125 3-door / short-wheelbase model can also use this gearbox and transfer case guard because Fabryka 4x4 specifically lists the product for LCJ120/125.

For diesel J125 vehicles, it can be paired with the matching:

Fabryka 4x4 6mm Aluminium Engine & Sump Guard – J120 / J125 Diesel

The J120-specific Fabryka 4x4 fuel tank guard should not be assumed to fit the J125.

Existing Steel Land Cruiser 120 Protection

OFM4x4 also offers steel protection alternatives for the Land Cruiser Prado 120 Series.

• Steel Engine & Sump Guard
• Steel Gearbox Guard
• Steel Fuel Tank Guard – 5-Door / LWB
• Steel Fuel Tank Guard – 3-Door / SWB

Existing 4mm Aluminium Alternatives

OFM4x4 also offers lighter 4mm aluminium protection options for the Land Cruiser 120 Series:

• 4mm Aluminium Engine & Sump Guard
• 4mm Aluminium Gearbox Guard

The Fabryka 4x4 system uses substantial 6mm aluminium and extends the drivetrain protection to both the gearbox and transfer case.

6mm Fabryka 4x4 Aluminium vs Steel Protection

Ideal Uses

• Green-laning
• Overlanding
• Expedition travel
• Rocky tracks
• Deep ruts
• Mountain trails
• Forestry roads
• Agricultural access roads
• Remote touring
• Water crossings with hidden obstacles
• Working 4x4 vehicles
• Land Cruiser J120 / J125 builds requiring additional drivetrain protection

What’s Included

• 1 × Fabryka 4x4 6mm aluminium gearbox & transfer case guard
• Required mounting components

Product Code: OLG

Note: Fabryka 4x4 advises that the finished product may differ in some minor details from the photographs as part of ongoing manufacturing development.

Installation

• Vehicle-specific fitment for Toyota Land Cruiser Prado J120 / J125
• Suitable for both 5-door LWB and 3-door SWB chassis applications
• Required mounting components supplied
• Position all mounting points before final tightening
• Check clearance around the gearbox, transfer case, exhaust and surrounding drivetrain components
• Ensure no drivetrain component contacts the guard after installation
• Re-check mounting hardware after initial off-road use
• The guard can be removed when additional drivetrain service access is required

Professional installation is recommended where the vehicle has modified exhaust, drivetrain, suspension or previous underbody modifications.

FAQs

Q1: What vehicles does this gearbox and transfer case guard fit?
A: It is designed for Toyota Land Cruiser Prado 120 Series J120 and J125 models manufactured between 2002 and 2009.

Q2: Does this fit both J120 and J125?
A: Yes. Fabryka 4x4 specifically lists this product for LCJ120/125.

Q3: Does it fit the 5-door J120?
A: Yes. J120 5-door / long-wheelbase vehicles are included in the stated application.

Q4: Does it fit the 3-door J125?
A: Yes. J125 3-door / short-wheelbase vehicles are also included in the stated application.

Q5: Is this guard diesel-only?
A: The supplier does not specify a diesel-only restriction for this gearbox and transfer case guard, so it is not listed as diesel-only in this product description.

Q6: What components does this guard protect?
A: It protects both the gearbox and transfer case against direct underside impacts.

Q7: How thick is the aluminium?
A: The protection plate is manufactured from 6mm thick aluminium.

Q8: How is the guard manufactured?
A: The aluminium plate is precision laser cut, press-brake formed and then hand finished.

Q9: Is mounting hardware included?
A: Yes. The required installation components are supplied with the guard.

Q10: Is a matching Fabryka 4x4 engine guard available?
A: Yes. A matching 6mm aluminium engine and sump guard is available for J120 and J125 diesel models with the original front bumper.

Q11: Is a matching Fabryka 4x4 fuel tank guard available?
A: Yes, but the Fabryka 4x4 fuel tank guard in this range is specifically listed for J120 rather than both J120 and J125.

Q12: Can I build a full J120 Fabryka 4x4 aluminium protection package?
A: Yes. A J120 can combine the engine/sump guard, this gearbox/transfer case guard and the J120-specific fuel tank guard.

Q13: What protection can I fit to a J125?
A: This gearbox/transfer case guard fits J125, and the matching Fabryka 4x4 engine/sump guard is also listed for J125 diesel models. The J120 fuel tank guard should not be assumed to fit J125.

Q14: Are steel alternatives available?
A: Yes. OFM4x4 also offers steel engine, gearbox and fuel tank protection options for the Land Cruiser 120 Series.

Q15: Are lighter aluminium alternatives available?
A: Yes. OFM4x4 also offers existing 4mm aluminium engine and gearbox guards for the Land Cruiser 120 Series.

Q16: Is this suitable for serious off-road use?
A: Yes. The substantial 6mm aluminium construction is intended to protect the gearbox and transfer case during demanding off-road, overland and expedition use.
