Suspension Lift kit BDS Lift 2"

Lift your vehicle with suspension kit from BDS

When fitting accessories to your vehicle, you need to properly adapt its suspension to the increased weight. Springs from BDS Suspension are the perfect solution for this situation. They are designed to withstand full coil bind and bounce back to full height as efficiently as possible while overcoming heavy off-road obstacles. The coil springs are shot peened - the purpose of the process is to smoothen the surface and harden the material. This provides high durability and increased tensile strength. The springs easily pick out bumps and improve comfort. They are coated with a black polyester-based powder paint, which flexibility provides long-lasting protection against corrosion.

High-quality BDS shock absorber

The NX2 Nitro Series features high-end performance at an affordable price for off-road enthusiasts. The shock absorber is equipped with 10-stage velocity sensitive valving. It instantly adapts to the road surface, thanks to the Twin-Tube design, filled with pressurized nitrogen. Thanks to these developments, the NX2 Nitro Series guarantees gentle, vibration-free and smooth suspension performance on road, and full control when driving off-road. Self-lubricating seals and a hardened chrome piston, the ends of which have been double-welded for reinforcement, also provide protection against rusting and rock chipping that can occur in extreme conditions. Fluon banding on piston provides high resistance to a wide range of temperatures and corrosion. Heavy-duty polyurethane bushings are included, along with metal sleeves, to ensure you get the best possible quality for your suspension components and to make installation easier. The metallic silver color finish and NX2 Nitro Series decals will add a more aggressive and professional look to your vehicle. These shocks are offered in various stem and eyelet bushing configurations for custom applications.

Specs:

Lift 2"

Maintains factory ride quality

Increased ground clearance

Easy install

Coil spring specs:

Powder-coated with a flexible polyester-based paint, which increases corrosion protection

The material used and the production technology guarantee the preservation of the physical properties of the product for many years

Shocks specs:

Pressurized nitrogen charged twin-tube design

Fluon banded piston 1-3/8"

14mm hardened chrome shaft

2" bodied shock

Vehicle specific valving for better control

Durable metallic silver finish

High-end performance at an affordable price

Lightening fast dampening adaptive to terrain

Large fluon banded piston with self lubricating seals

Front shock dimensions:

Extended: 26.20"

Compressed: 15.67"

Travel: 10.53"

Rear shock dimensions:

Extended: 29.78"

Compressed: 17.59"

Travel: 12.19"

Front shock mounts:

Top mount: eyelet

Bottom mount: eyelet

Rear shock mounts:

Top mount: eyelet

Bottom mount: eyelet

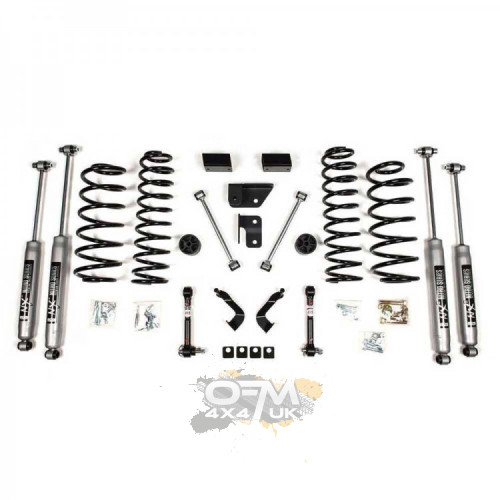

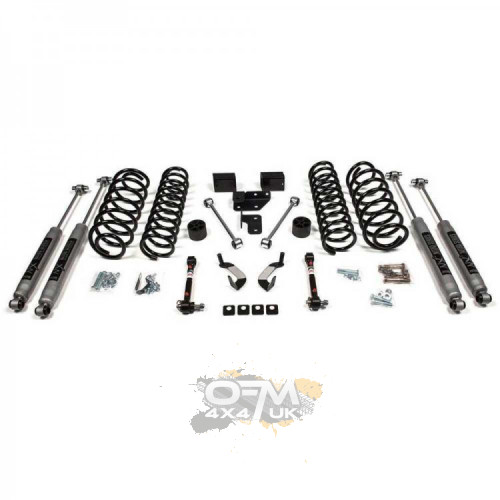

In the box:

(2) Front coil spring

(2) Front shock NX2 Nitro series

(2) Front bump stop spacer

(2) Front sway bar link disconnect

(2) Rear coil spring

Rear track bar bracket

(2) Rear bump stop spacer

(2) Rear sway bar link

(2) Rear shock NX2 Nitro series

Track bar bracket support

Notes:

Non-Rubicon comes from factory at lower ride height, will net slightly over 2" - final stance the same for all models

Stock wheels cannot be reinstalled without spacers due to rear sway bar interference

Does NOT fit with diesel models

Does NOT fit with Rubicon 392 models

Does NOT fit with 4XE models
