Suspension Lift kit Zone Lift 4" 97-02

Raise your vehicle with coil spring spacers from Zone

This 4" suspension lift lets you clear 33" tyres and have the ground clearance and wheel travel you want when you venture off road. Bump stop extensions properly limit up-travel, protecting your vehicle. Full length replacement coil springs add additional ride height while maintaining ride quality. Heavy-duty lower control arms improve strength and articulation while correcting caster. Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll. Rear track bar bracket correctly positions rear axle under vehicle. Transfer case drop kit included to correct rear driveline angle and allow use of factory rear driveshaft.

Specs:

Lift 4"

Increases ground clearance

Allows for 33" tyres assembly

Durable components

Recommended tyres and wheels:

Wheel size 15x8 | Backspacing 3,5" | Max. tyre size 33x12,5

Wheel size 16x8 | Backspacing 3,5" | Max. tyre size 33x12,5

Wheel size 17x9 | Backspacing 3,5" | Max. tyre size 33x12,5

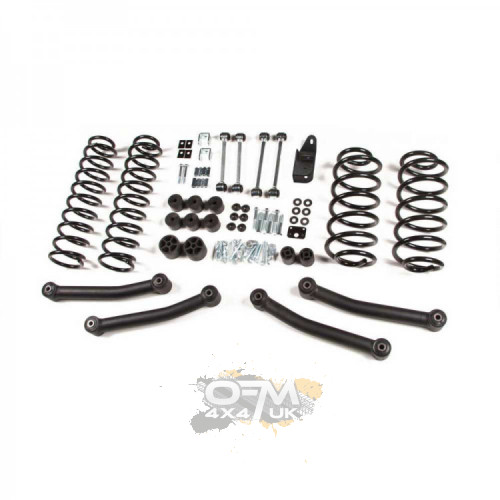

In the box:

(2) Front coil spring

Lower control arms

(4) Sway bar link

Track bar relocation bracket

Transfer case drop brackets

Bump stop extensions

(2) Rear coil spring

Hardware

Notes:

The kit does not include shock absorbers, which are necessary for the lift to function correctly. We recommend replacing the shock absorbers, we recommend: BDS85967 and BDS85976 (sold separately)
