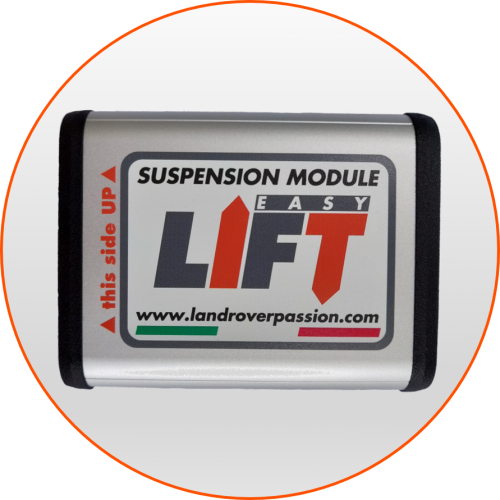

Suspension Module Easy Lift 4.0 for Land Rover

The Easy Lift 4.0 Suspensions module allows taking advantage of the potential of the car’s original pneumatic suspension system at its best. Its installation, totally plug and play, takes only 45 minutes at least; with no need to modify your car’s mechanics, with a simple click on Easy Lift’s controller or on the App available for Android and iOS devices, you can change the trim and height from ground at your own pleasure, depending on the ground conditions or presence of obstacles to face and exceed, independently from the vehicle’s speed.

The Standard programs allow 7 height variations, with factory configuration: -30mm; -20mm; -10mm; Neutro;+35mm, +55mm, +70mm and Special programs: Wheel alignment, Extra Low and Recovery.

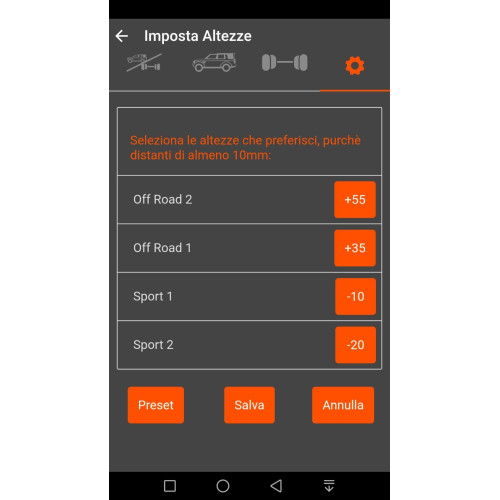

By the Settings page of our App, you’ll change it and configure each preset in a measuring range from -35 to +75 millimetres in 5mm steps.

Easy Lift module can be used in addition to the Land Rover heights, in order to increase the range of combinations and variations reachable. Thanks to the combination of the Land Rover Off-Road height and Easy Lift +70mm setting, for example, a total variation of about +125mm is obtainable.

The Special programs offer the ability to self–manage special or emergency situations:

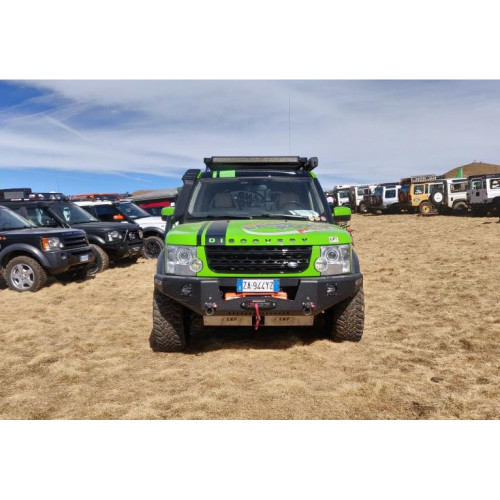

• the Self-Levelling program allows you to automatically level the vehicle in order to reach maximum comfort to sleep in the car or in a roof-placed tent. Easy Lift can compensate angles until 4/4,5° on a single axe or of equivalent value on the sum of both axes, with a tolerance of 0,5° per axe.

• the Wheel alignment program performs an accurate wheel alignment of the vehicle; no more need to go to the dealer to lock and subsequently restore the suspensions, reducing the time and costs of the intervention.

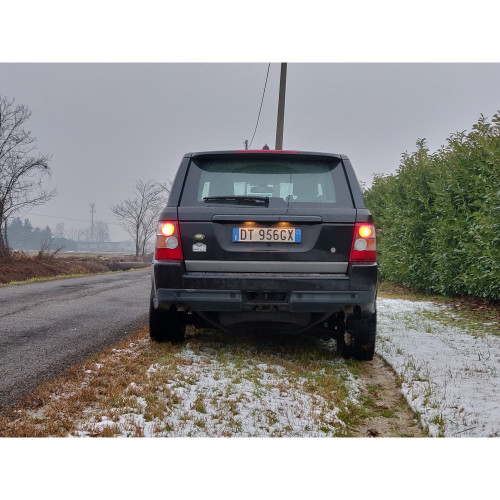

• the Extra Low program enables to lower of the vehicle down to the minimum limit allowed, without completely emptying the pneumatic system and/or without generation and recording of faults in the system board’s wheel speed sensor. It’s designed to facilitate the boarding and alighting of persons with reduced mobility or to facilitate the loading/unloading of luggage or parcels/materials from the vehicle, whether they are stored in the luggage door or on the roof rack.

Embedded ABS fault management:

• in case of an ABS sensor fault, the car is programmed to lock user heights variations and lower each suspension on bump stops.

• if this happens, with Easy Lift you’ll continue to drive normally simply by raising the car with any of its lift programs higher than 40mm. You don’t need anything else. No special programs are required in this case! Lift and drive!

Default Height customizable:

• the default program reached by double-clicking the controller’s knob is “Neutral”.

• this default program can be customized following your own needs and preferences.
• vehicles that feature big tires, for example, may need a greater default height compared to the Neutral one.
• customers who own a more sporty vehicle may prefer a constantly lowered setting, instead.
• customization can be done through both the phone App (Settings page) and through the Controller.

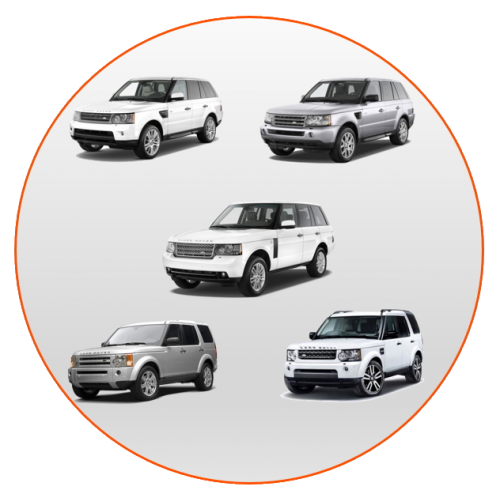

Easy Lift is suitable on:

Land Rover Discovery 3/LR3 L319

Land Rover Discovery 4/LR4 L319

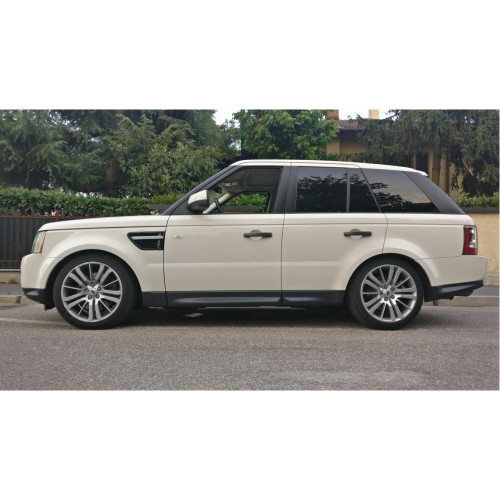

Range Rover Sport L320 Model Year 2004-2009

Range Rover Sport L320 Model Year 2010-2012

Range Rover L322 Model Year 2005-2012 (*)

(*) Before the purchase send us your VIN number to check the compatibility

EASY LIFT 4.0

• Raise/Lower programs: 7

• Factory heights (mm): -30, -20, -10, Neutral, +35, +55, +75
• Programmable Heights: YES
• Range: -35 to +75
• Special programs: 3
• Self-levelling
• Service
• Extra Low

The smartphone App which completes the equipment of all Easy Lift versions and, simultaneously with the use of the car’s handsfree, allows to:

• customize the module (heights and default program)

• to manage the module and view in real-time:
• suspensions excursion
• program or height activated
• mirroring the controller by displaying the program or height you are selecting while moving the knob

The App is customizable by choosing the vehicle model, and the tire type that you want to show (off-road or road type) and it is available in English.
