Will a Big Brake Kit Fit Your 4x4 Wheels? Clearance Checks Before Ordering

Published 7 October 2026 · OFM4x4.CO.UK

A brake kit can match the vehicle yet still collide with its wheels. “Fits 17-inch wheels” is a useful starting point, but it cannot describe every spoke shape, barrel profile or balance-weight position.

Before committing to a brake upgrade, prove the clearance for the exact kit and wheel combination. This guide explains what to request and how to avoid turning a straightforward order into a second wheel purchase.

There are two different clearance problems

The wheel barrel surrounds the disc and caliper. Its internal profile, rather than its advertised diameter alone, determines the space available. A step in the barrel or an adhesive balance weight can occupy the tightest area.

The spokes create a separate limit across the face of the caliper. Two wheels with the same diameter, width and offset can have different spoke shapes. One may clear while the other touches. Changing offset is therefore not a substitute for checking the actual brake profile.

Identify the vehicle, kit and wheel precisely

Give the supplier the vehicle make, model, year, axle, engine and current brake arrangement. Include the proposed kit’s part number and the wheel manufacturer, model, diameter, width and offset. Photographs of markings and the rear of a clean wheel are useful, but do not replace dimensions.

OFM4x4 lists the Forza four-piston front kit for Patrol Y61. Confirm the exact supplied kit and clearance information rather than applying a general Patrol fitment claim to every wheel or brake variant.

Use the correct template at the correct scale

Brembo’s official partner Race Technologies describes using the kit-specific brake profile, printing at full scale and checking the printed dimensions. Its procedure is useful evidence of why scaled-down printouts give false confidence. It does not make a Brembo drawing valid for a Forza or DBA product.

Request the drawing for your selected kit, check its reference measurement with a ruler and keep the template stiff enough to retain its shape. Follow the maker’s placement instructions and inspect around the wheel. If no suitable drawing is available, ask for an approved test-fit method before buying.

Check the required margin and the complete wheel

A visible gap is not automatically sufficient. Follow the selected brake maker’s minimum clearance, including any allowance for weights. Do not transfer a numeric margin from another brand without confirmation. Ask the installer to check all wheel positions that can receive that brake assembly, including the spare.

Distinguish a caliper-changing kit from a disc-and-pad package intended for an existing brake arrangement. OFM4x4 also lists DBA 4625S and DBA 625S front packages for Patrol Y61. Confirm what each includes, which original components it retains and the exact vehicle application before comparing options.

If it touches, resolve the fitment before installation

Do not grind a caliper or remove material from a wheel to gain clearance. A spacer is also a wider fitment decision: hub location, fastener engagement, track, tyre-to-body clearance and the vehicle’s approved setup all matter. Have the brake and wheel suppliers assess the proposed solution.

Sometimes a different wheel design or an alternative brake package is the cleaner answer. Get the combination confirmed before fitting tyres or completing installation. A wheel should rotate freely with the specified clearance, not merely bolt onto the hub.

Common wheel-clearance questions

Does a larger wheel always solve the problem?

It may improve barrel space but leave spoke interference unchanged. Check both directions.

Can I reuse a template from another kit?

No. Rotor, hat, caliper and mounting dimensions define the profile. Use the drawing for the actual kit.

Must I check a steel spare if my road wheels are alloys?

Yes. Its shape can differ substantially. Confirm that it can be used in the intended position after the upgrade.

Get the wheel information checked before ordering

Contact OFM4x4 with your vehicle details, proposed brake kit and wheel markings. Include the spare-wheel specification so clearance questions can be resolved together.

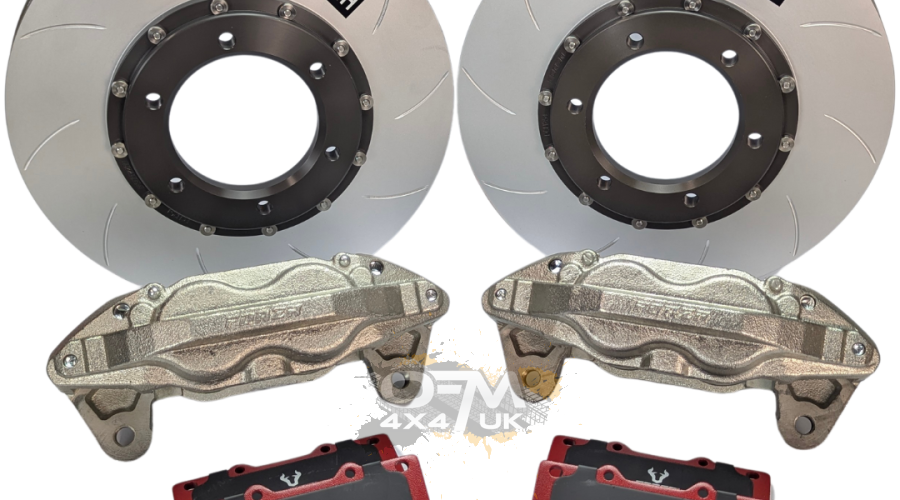

Main image: genuine Forza brake-kit catalogue photograph. It illustrates the product, not a verified installation inside a particular wheel.
