Suspension Lift kit Clayton Off Road Premium 392 Lift 2,5"

392 beast!

The Jeep Wrangler 392 is finally here and for the most part, it's everything power-hungry Jeep fans have been craving for decades. Equipped with a 470-hp V-8 engine, the 392 certainly delivers on power, but the 2" factory lift and suspension system as a whole leaves a little to be desired. Soft springs, non-adjustable components, and not quite enough lift to fit those 37" or larger tyres means an immediate suspension upgrade is imminent. Clayton Off Road is addressing all of these issues and more by making our entire lineup of JL Wrangler suspension systems available specifically for the 392.

Upgrade your vehicle with Clayton Off Road

The modifications you need to make to get off-road and traverse the toughest trails are primarily to increase ground clearance and fit larger tyres to your vehicle. Suspension kit contains all the necessary components to meet your requirements. The whole set is characterised by easy installation and increased durability due to the materials used. It provides ideal handling on tarmac, while delivering the right strength and characteristics for safe and secure off-road use.

What you find in the kit?

Clayton's control arms offer a greasable and rebuildable johnny joint at one end, offering 40 degrees of misalignment. At the axle end, they use a Giiro joint to help absorb road noise and vibrations for a smooth and comfortable ride. The Giiro joint is a dual durometer, self centering joint, that is maintenance free. Dual rate rear coil help prevent coils from unseating at maximum articulation. The first rate will fully compress under the weight of the vehicle at ride height, utilizing the second rate while driving down the road. This rate has been increased over factory to help support added weight and offroad use.

Specs:

Extremely durable materials

Provides smooth and excellent handling on the road

Increases ground clearance, gives an aggressive look

Easy to install

Control arms specs:

Bolt in design

Johnny joints to provide superior flex

Joint to isolate road noise & vibration

Upper bent for tyre clearance

Rear progressive coil spring specs:

Made in the USA

Powder coated black

Handles well aftermarket bumpers and winches

Ensures smooth and excellent on and off-road handling

Designed to deliver trouble-free, consistent performance

Coil spring specs:

Extremely durable materials

Powder coated black

Provide the best in ride quality without sacrificing durability

Handles well aftermarket bumpers and winches

Ensures smooth and excellent on and off-road handling

Designed to deliver trouble-free, consistent performance

Front lower control arm dimensions:

Center to Center STOCK = 24.000"

Center to Center MIN = 23.9375"

Center to Center MAX = 24.880"

Front upper control arm dimensions:

Center to Center STOCK = 20,100"

Center to Center MIN = 19,130"

Center to Center MAX = 22,283

Rear lower control arm dimensions:

Center to Center STOCK = 19,764"

Center to Center MIN = 19,686"

Center to Center MAX = 20,566"

Rear upper control arm dimensions:

Center to Center STOCK = 17.425"

Center to Center MIN = 17.290"

Center to Center MAX = 18.665"

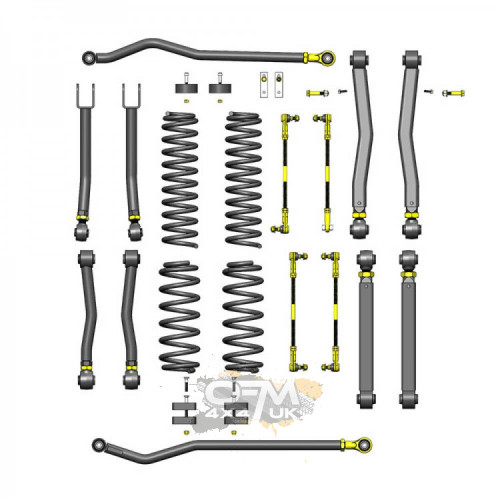

In the box:

(2) Front coil spring

(2) Front upper adjustable short arm Premium

(2) Front lower adjustable short arm Premium

Front adjustable track bar

(2) Front adjustable sway bar end link

(2) Front bump stop

(2) Rear progressive coil spring

(2) Rear upper adjustable short arm Premium

(2) Rear lower adjustable short arm Premium

Rear adjustable track bar

(2) Rear adjustable sway bar end link

(2) Rear bump stop

Notes:

Fits with Jeep Wrangler JL 392 models ONLY

The Jeep Wrangler JL 392 has a OEM 2" lift. This kit gives an additional 1".
