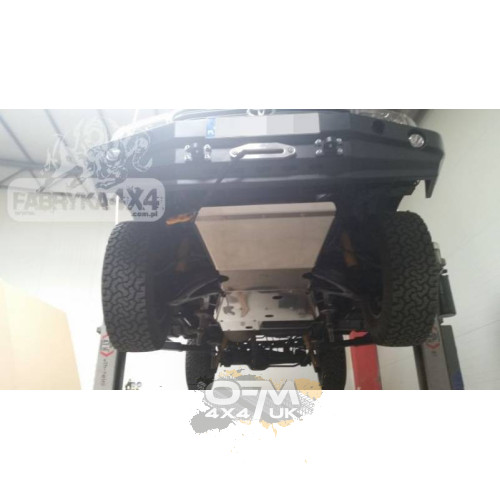

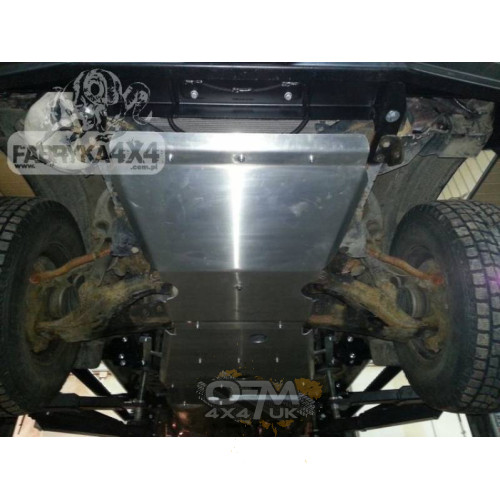

Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser 100 J100 1998–2007 – 6mm

The Fabryka 4x4 Aluminium Engine & Sump Guard is a heavy-duty, vehicle-specific underbody protection plate designed for the Toyota Land Cruiser 100 / J100 manufactured between 1998 and 2007.

Manufactured from substantial 6mm aluminium plate, the guard protects the engine underside and sump area against rocks, mud, deep ruts, raised ground and other obstacles encountered during off-road driving, green-laning, overlanding and expedition travel. :contentReference[oaicite:1]{index=1}

The protection plate is precision laser cut, formed using a press brake and then hand finished to provide accurate fitment and durable vehicle-specific protection. All required mounting components are supplied with the guard. :contentReference[oaicite:2]{index=2}

Vehicle Compatibility: Toyota Land Cruiser 100 / J100 1998–2007

Product Code: OLA

Build your Toyota Land Cruiser 100 aluminium underbody protection package:
Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser 100
Fabryka 4x4 Aluminium Gearbox Guard – Diesel Automatic
Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Automatic
Fabryka 4x4 Aluminium Gearbox Guard – Petrol Automatic
Fabryka 4x4 Aluminium Transfer Case Guard – Petrol Automatic
Fabryka 4x4 Aluminium Gearbox Guard – Diesel Manual
Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Manual

Steel protection alternatives:
Steel Engine & Sump Guard for Toyota Land Cruiser J100 1998–2008
Steel Gearbox Guard for Toyota Land Cruiser J100 1998–2008

Explore more underbody protection:
Steel & Aluminium Underbody Protection

Key Features

• Designed for Toyota Land Cruiser 100 / J100 1998–2007
• Protects the engine underside and sump area
• Manufactured from heavy-duty 6mm aluminium plate
• Precision laser-cut construction
• Press-brake formed for accurate vehicle-specific fitment
• Hand finished during production
• Required mounting components included
• Can be removed when servicing requires additional underside access
• Excellent natural corrosion resistance
• Suitable for off-road, overland, touring and expedition vehicles

Vehicle Compatibility

Technical Overview

Heavy-Duty Engine & Sump Protection

The engine sump and lower engine area are among the most exposed components underneath the Land Cruiser 100 when the vehicle is driven across rocks, deep ruts, raised centre sections and uneven terrain.

A direct impact can deform or damage the sump and may lead to engine oil loss. In severe situations, continuing to run the engine following oil loss can result in major mechanical damage.

This Fabryka 4x4 protection plate creates a substantial barrier underneath the engine and sump area, helping absorb and spread impact loads before they reach critical mechanical components.

6mm Aluminium Construction

The guard is manufactured from substantial 6mm aluminium plate, providing strong protection while retaining the useful characteristics of aluminium for an off-road vehicle build. Fabryka 4x4 specifies 6mm aluminium for this product. :contentReference[oaicite:3]{index=3}

Benefits of aluminium underbody protection include:

• Substantial impact protection
• Lower weight than comparable heavy steel armour
• Excellent natural resistance to corrosion
• Suitability for mud, water and wet environments
• Ideal for touring and expedition builds where total vehicle weight matters

Precision Laser-Cut Construction

The guard is precision laser cut during manufacturing, helping provide consistent dimensions, mounting positions and edge profiles. :contentReference[oaicite:4]{index=4}

Accurate fabrication is particularly important for vehicle-specific underbody armour because the plate must fit closely around the chassis and mechanical components while maintaining correct clearance.

Press-Brake Formed & Hand Finished

After laser cutting, the aluminium plate is formed using a press brake to create the required profile and structural shape. Fabryka 4x4 then hand finishes the product as part of the manufacturing process. :contentReference[oaicite:5]{index=5}

This combination of precision fabrication and manual finishing produces a guard designed specifically around the Land Cruiser J100 underside.

Protection Against Off-Road Hazards

The engine guard helps protect against common hazards encountered during off-road and expedition driving, including:

• Rocks and exposed stone
• Deep wheel ruts
• Raised centre sections
• Tree roots
• Branches
• Mud and trail debris
• Hidden obstacles during water crossings
• Uneven forestry and agricultural tracks

Foundation of the Aluminium J100 Protection System

This engine and sump guard forms the front section of the Fabryka 4x4 aluminium underbody protection range for the Land Cruiser 100.

Unlike the gearbox and transfer case guards, which vary according to engine and transmission configuration, the supplier lists this engine guard simply for the Toyota Land Cruiser J100 1998–2007. :contentReference[oaicite:6]{index=6}

The correct gearbox and transfer case guards should then be selected according to the vehicle drivetrain:

• Diesel Automatic
• Petrol Automatic
• Diesel Manual

Diesel Automatic Protection Package

For J100 diesel automatic vehicles, combine this engine guard with:

• Fabryka 4x4 6mm Aluminium Gearbox Guard – Diesel Automatic
• Fabryka 4x4 6mm Aluminium Transfer Case Guard – Diesel Automatic

Together, these provide protection for the engine, sump, automatic gearbox and transfer case.

Petrol Automatic Protection Package

For petrol automatic Land Cruiser 100 vehicles, use this engine guard together with the corresponding petrol automatic drivetrain guards:

• Fabryka 4x4 Aluminium Gearbox Guard – Petrol Automatic
• Fabryka 4x4 Aluminium Transfer Case Guard – Petrol Automatic

Diesel Manual Protection Package

Diesel manual J100 models require the corresponding manual transmission protection plates:

• Fabryka 4x4 Aluminium Gearbox Guard – Diesel Manual
• Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Manual

Steel Underbody Protection Alternatives

For owners who prefer traditional steel protection, OFM4x4 also offers dedicated steel guards for the Toyota Land Cruiser 100 / J100.

• Steel Engine & Sump Guard for Toyota Land Cruiser J100 1998–2008
• Steel Gearbox Guard for Toyota Land Cruiser J100 1998–2008

6mm Aluminium vs Steel Protection

The best material depends on intended terrain, vehicle payload and whether reducing the overall weight of the build is a priority.

Ideal Uses

• Overlanding
• Expedition travel
• Green-laning
• Rocky tracks
• Deep ruts
• Forestry and agricultural roads
• Remote touring
• Water crossings with hidden obstacles
• Working 4x4 vehicles
• Land Cruiser 100 builds requiring substantial engine protection

What’s Included

• 1 × Fabryka 4x4 6mm aluminium engine & sump guard
• Required mounting components

Product Code: OLA

Note: Fabryka 4x4 advises that the finished product may differ in some details from the photographs as part of ongoing production development. :contentReference[oaicite:7]{index=7}

Installation

• Vehicle-specific fitment for Toyota Land Cruiser 100 / J100
• Required mounting components are supplied
• Position all mounting points before final tightening
• Check clearance around the engine, sump and surrounding components
• Re-check mounting hardware after initial off-road use
• The guard can be removed if additional underside access is required for servicing

Fabryka 4x4 states that all necessary installation components are included and that the guard can be fitted and removed when required. :contentReference[oaicite:8]{index=8}

FAQs

Q1: What vehicle does this engine guard fit?
A: It is designed for Toyota Land Cruiser 100 / J100 models manufactured between 1998 and 2007.

Q2: Is this guard transmission-specific?
A: The supplier lists this engine guard simply for the Land Cruiser J100 1998–2007, unlike the gearbox and transfer case guards that are divided by drivetrain configuration. :contentReference[oaicite:9]{index=9}

Q3: How thick is the aluminium?
A: The guard is manufactured from 6mm thick aluminium. :contentReference[oaicite:10]{index=10}

Q4: What does this guard protect?
A: It is designed primarily to protect the engine underside and sump area from rocks, mud and other off-road obstacles. :contentReference[oaicite:11]{index=11}

Q5: How is the guard manufactured?
A: The aluminium plate is precision laser cut, formed using a press brake and then hand finished. :contentReference[oaicite:12]{index=12}

Q6: Is mounting hardware included?
A: Yes. Fabryka 4x4 states that all required mounting components are supplied with the product. :contentReference[oaicite:13]{index=13}

Q7: Can the guard be removed for servicing?
A: Yes. The supplier states that it can be installed and removed as required. :contentReference[oaicite:14]{index=14}

Q8: Are matching gearbox guards available?
A: Yes. Separate aluminium gearbox guards are available for diesel automatic, petrol automatic and diesel manual Land Cruiser 100 configurations.

Q9: Are matching transfer case guards available?
A: Yes. Transmission-specific Fabryka 4x4 transfer case guards are available for the J100 range.

Q10: Can I build a complete aluminium protection package?
A: Yes. This engine guard can be combined with the correct gearbox and transfer case guards for your drivetrain configuration.

Q11: Is a steel engine guard available?
A: Yes. OFM4x4 also offers a steel engine and sump guard for Toyota Land Cruiser J100 models.

Q12: Is this suitable for overland and expedition use?
A: Yes. The substantial 6mm aluminium construction is well suited to vehicles used on rocky tracks, deep ruts and demanding off-road terrain.
