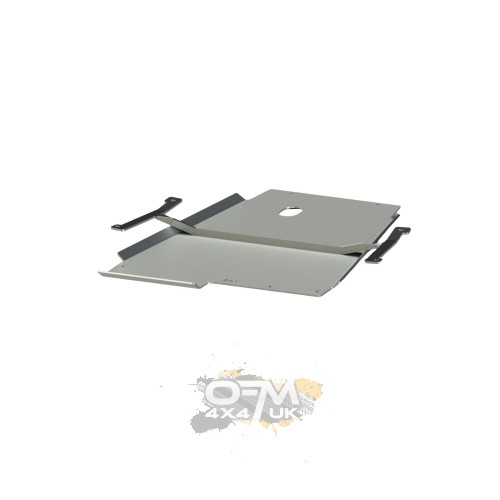

Fabryka 4x4 Aluminium Gearbox Guard for Toyota Land Cruiser 100 J100 Diesel Manual 1998–2007 – 6mm

The Fabryka 4x4 Aluminium Gearbox Guard is a heavy-duty, vehicle-specific underbody protection plate designed for Toyota Land Cruiser 100 / J100 diesel models with manual transmission manufactured between 1998 and 2007.

Manufactured from substantial 6mm aluminium plate, this skid plate protects the manual gearbox from rocks, deep ruts, raised ground, mud, branches and other obstacles encountered during demanding off-road driving, green-laning, overlanding and expedition travel.

The protection plate is precision laser cut, formed using a press brake and then hand finished to provide accurate vehicle-specific fitment and robust protection for the transmission underside.

Important Fitment: This version is specifically designed for diesel Toyota Land Cruiser J100 models with manual transmission. Separate Fabryka 4x4 gearbox guards are available for diesel automatic and petrol automatic configurations.

Vehicle Compatibility: Toyota Land Cruiser 100 / J100 1998–2007

Engine: Diesel

Transmission: Manual

Product Code: OLE

Build your Toyota Land Cruiser 100 aluminium underbody protection package:
Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser 100
Fabryka 4x4 Aluminium Gearbox Guard – Diesel Manual
Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Manual
Fabryka 4x4 Aluminium Gearbox Guard – Diesel Automatic
Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Automatic
Fabryka 4x4 Aluminium Gearbox Guard – Petrol Automatic
Fabryka 4x4 Aluminium Transfer Case Guard – Petrol Automatic

Steel protection alternatives:
Steel Engine & Sump Guard for Toyota Land Cruiser J100 1998–2008
Steel Gearbox Guard for Toyota Land Cruiser J100 1998–2008

Explore more underbody protection:
Steel & Aluminium Underbody Protection

Key Features

• Designed specifically for Toyota Land Cruiser 100 / J100 diesel manual models
• Vehicle application: 1998–2007
• Protects the manual gearbox / transmission underside
• Manufactured from heavy-duty 6mm aluminium plate
• Precision laser-cut construction
• Press-brake formed for accurate vehicle-specific fitment
• Hand finished during production
• Required mounting components included
• Designed to be removable when transmission servicing requires additional access
• Excellent natural corrosion resistance
• Suitable for off-road, overland, touring and expedition vehicles

Vehicle Compatibility

Important Engine & Transmission Compatibility

This gearbox guard is not a universal Toyota Land Cruiser 100 protection plate.

This Fabryka 4x4 OLE version is specifically designed for:

• Toyota Land Cruiser 100 / J100
• 1998–2007 models
• Diesel engine
• Manual transmission

Different gearbox protection plates are available for diesel automatic and petrol automatic J100 models.

Please confirm the vehicle's engine and transmission configuration before ordering.

Technical Overview

Heavy-Duty Manual Gearbox Protection

The manual gearbox is a critical and valuable drivetrain component underneath the Toyota Land Cruiser 100 and can become exposed when the vehicle is driven across difficult terrain.

Rocks, deep ruts, raised centre sections and hidden obstacles can make direct contact with the transmission underside. A severe impact may damage the gearbox casing or surrounding components and could result in lubricant loss, transmission problems or expensive repairs.

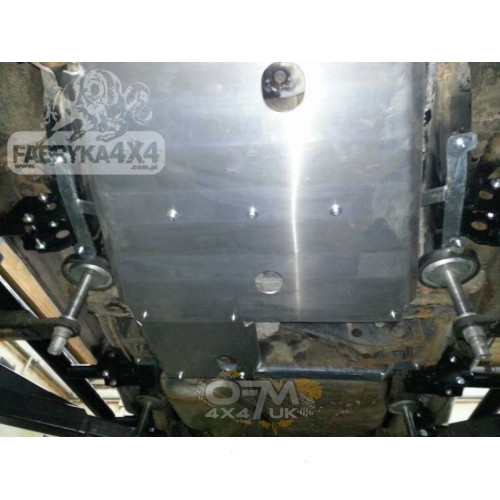

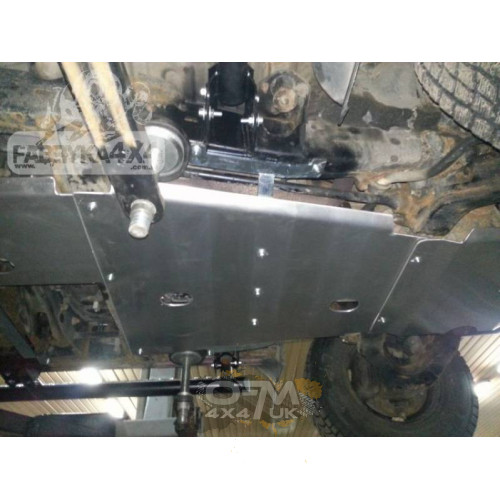

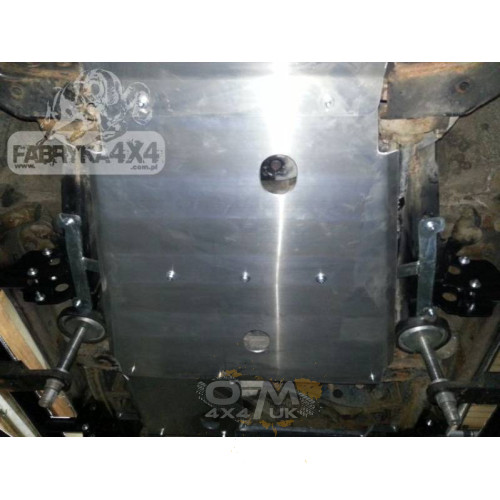

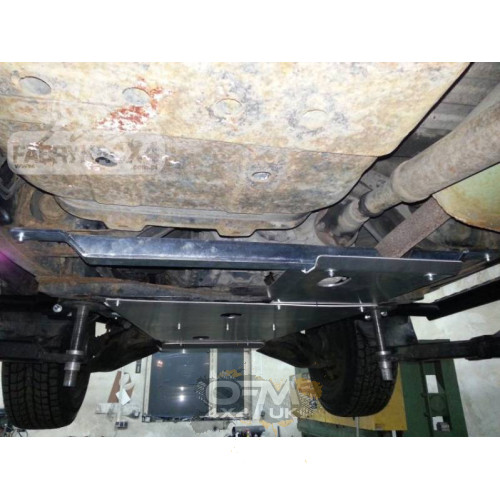

This Fabryka 4x4 aluminium gearbox guard creates a substantial protective barrier beneath the manual transmission, helping reduce the risk of direct impact damage.

6mm Aluminium Construction

The gearbox guard is manufactured from substantial 6mm thick aluminium plate.

The considerable thickness provides robust protection while retaining the advantages that make aluminium particularly suitable for touring and expedition vehicle armour.

• Strong resistance to underside impacts
• Lower weight than comparable heavy steel armour
• Excellent natural corrosion resistance
• Suitable for muddy, wet and exposed environments
• Well suited to overland and expedition vehicle builds

Precision Laser-Cut Construction

The aluminium protection plate is precision laser cut during production.

This allows the overall profile, edges and mounting areas to be produced accurately and consistently, helping the guard fit correctly around the J100 manual drivetrain.

Press-Brake Formed & Hand Finished

After laser cutting, the plate is shaped using a press brake to create the required structural profile and mounting geometry.

The guard is then hand finished as part of the production process.

This combination of precision fabrication and manual finishing produces a vehicle-specific protection plate developed around the diesel manual Toyota Land Cruiser 100 drivetrain.

Designed Specifically for Diesel Manual J100 Models

The shape, position and mounting arrangement of the gearbox differs between Land Cruiser 100 drivetrain configurations.

Fabryka 4x4 therefore produces different gearbox guards for:

• Diesel manual
• Diesel automatic
• Petrol automatic

This OLE gearbox guard is specifically for diesel manual models and should not be substituted for either automatic transmission version.

Pair with the Diesel Manual Transfer Case Guard

For broader drivetrain protection, this gearbox guard can be combined with the matching Fabryka 4x4 aluminium transfer case guard for diesel manual J100 models.

• 6mm Aluminium Gearbox Guard – Diesel Manual – this product
• 6mm Aluminium Transfer Case Guard – Diesel Manual

Using both guards provides dedicated protection beneath the manual gearbox and transfer case instead of leaving one drivetrain section exposed.

Add Aluminium Engine & Sump Protection

Protection can be extended towards the front of the vehicle using the matching Fabryka 4x4 aluminium engine and sump guard.

Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser 100 J100 1998–2007 – 6mm

Combining the correct engine, gearbox and transfer case protection plates creates a substantially broader aluminium underbody protection system.

Diesel Manual Aluminium Protection Package

For a diesel manual Toyota Land Cruiser 100 / J100, the matching Fabryka 4x4 aluminium protection combination is:

• 6mm Aluminium Engine & Sump Guard
• 6mm Aluminium Gearbox Guard – Diesel Manual
• 6mm Aluminium Transfer Case Guard – Diesel Manual

Together, these components provide dedicated protection beneath the:

• Engine
• Engine sump
• Manual gearbox
• Transfer case

Diesel Automatic Protection Options

Diesel automatic Land Cruiser 100 models require their dedicated automatic transmission protection plates:

• Fabryka 4x4 Aluminium Gearbox Guard – Diesel Automatic
• Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Automatic

Petrol Automatic Protection Options

Petrol automatic Land Cruiser 100 models require the corresponding petrol automatic protection plates:

• Fabryka 4x4 Aluminium Gearbox Guard – Petrol Automatic
• Fabryka 4x4 Aluminium Transfer Case Guard – Petrol Automatic

Steel Underbody Protection Alternatives

For Land Cruiser 100 owners who prefer traditional steel underbody armour, OFM4x4 also offers dedicated steel protection products.

• Steel Engine & Sump Guard for Toyota Land Cruiser J100 1998–2008
• Steel Gearbox Guard for Toyota Land Cruiser J100 1998–2008

6mm Aluminium vs Steel Gearbox Protection

Protection Against Off-Road Hazards

The gearbox guard helps protect against common hazards encountered when the Land Cruiser 100 is used away from paved roads:

• Rocks and exposed stone
• Deep wheel ruts
• Raised centre sections
• Tree roots
• Branches
• Mud and trail debris
• Hidden obstacles during water crossings
• Uneven forestry and agricultural tracks

Ideal Uses

• Overlanding
• Expedition travel
• Green-laning
• Rocky tracks
• Deep ruts
• Forestry and agricultural roads
• Remote touring
• Water crossings
• Working 4x4 vehicles
• Diesel manual Land Cruiser 100 builds requiring additional gearbox protection

What’s Included

• 1 × Fabryka 4x4 6mm aluminium gearbox guard
• Required mounting components

Product Code: OLE

Note: The finished product may differ in some minor details from the photographs as part of ongoing manufacturing development.

Installation

• Vehicle-specific fitment for Toyota Land Cruiser 100 / J100
• Designed specifically for diesel manual models
• Required mounting components supplied
• Confirm engine and transmission configuration before installation
• Position all mounting points before final tightening
• Check clearance around the gearbox, transfer case, exhaust and surrounding drivetrain components
• Re-check all mounting hardware after initial off-road use
• The guard can be removed when transmission servicing requires additional access

Professional installation is recommended where the vehicle has previous drivetrain, exhaust or underbody modifications.

FAQs

Q1: What vehicle does this gearbox guard fit?
A: It is designed for Toyota Land Cruiser 100 / J100 diesel models manufactured between 1998 and 2007 and fitted with a manual transmission.

Q2: Is this specifically for diesel manual Land Cruiser 100 models?
A: Yes. This Fabryka 4x4 OLE gearbox guard is specifically designed for the diesel manual drivetrain configuration.

Q3: Does this gearbox guard fit diesel automatic models?
A: No. A separate Fabryka 4x4 aluminium gearbox guard is available specifically for diesel automatic J100 models.

Q4: Does it fit petrol automatic models?
A: No. A separate gearbox guard is available specifically for petrol automatic Land Cruiser 100 models.

Q5: How thick is the aluminium?
A: The gearbox guard is manufactured from 6mm thick aluminium.

Q6: What component does this guard protect?
A: It protects the manual gearbox and transmission underside against direct impacts from rocks, ruts and other obstacles.

Q7: How is the guard manufactured?
A: The aluminium plate is precision laser cut, formed using a press brake and then hand finished.

Q8: Is mounting hardware supplied?
A: Yes. All required mounting components are supplied with the guard.

Q9: Is a matching diesel manual transfer case guard available?
A: Yes. A dedicated Fabryka 4x4 6mm aluminium transfer case guard is available specifically for diesel manual Land Cruiser 100 models.

Q10: Is an aluminium engine and sump guard available?
A: Yes. A Fabryka 4x4 6mm aluminium engine and sump guard is also available for the Toyota Land Cruiser 100.

Q11: Can I build a complete diesel manual aluminium protection setup?
A: Yes. This gearbox guard can be combined with the aluminium engine and sump guard and the matching diesel manual transfer case guard.

Q12: Why is transmission type important when choosing the gearbox guard?
A: Gearbox dimensions, mounting arrangements and drivetrain layout differ between manual and automatic configurations, so the correct vehicle-specific protection plate must be selected.

Q13: Can the gearbox guard be removed for servicing?
A: Yes. It can be removed when additional access to the transmission is required.

Q14: Is a steel gearbox guard available as an alternative?
A: Yes. OFM4x4 also offers a steel gearbox guard for the Toyota Land Cruiser J100.

Q15: Is this suitable for off-road and expedition use?
A: Yes. The substantial 6mm aluminium construction is designed to protect the gearbox during demanding off-road, touring, overland and expedition use.
