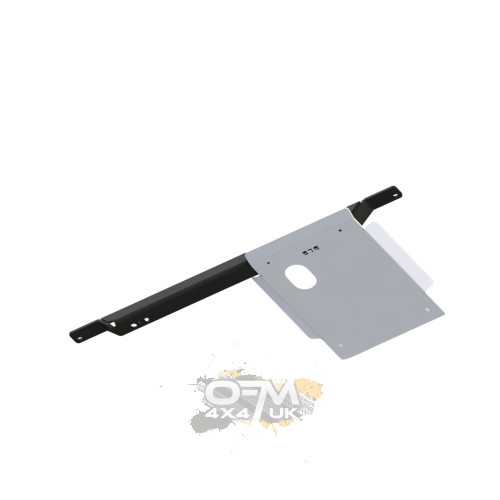

Fabryka 4x4 Aluminium Transfer Case Guard for Toyota Land Cruiser 100 J100 Diesel Automatic 1998–2007 – 6mm

The Fabryka 4x4 Aluminium Transfer Case Guard is a vehicle-specific underbody protection plate designed for Toyota Land Cruiser 100 / J100 diesel models with automatic transmission manufactured between 1998 and 2007.

Manufactured from substantial 6mm aluminium plate, this guard provides heavy-duty protection for the transfer case against rocks, deep ruts, raised ground, branches and other obstacles encountered during off-road driving, overlanding and expedition travel.

The protection plate is precision laser cut and formed using a press brake before being hand finished to achieve accurate vehicle-specific fitment and a durable finished product.

Important Fitment: This version is specifically designed for diesel Toyota Land Cruiser J100 models with automatic transmission. Separate transfer case guards are available for petrol automatic and diesel manual configurations.

Vehicle Compatibility: Toyota Land Cruiser 100 / J100 1998–2007

Engine: Diesel

Transmission: Automatic

Product Code: OLB

Build your Toyota Land Cruiser 100 underbody protection package:
Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser 100
Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Automatic
Fabryka 4x4 Aluminium Transfer Case Guard – Petrol Automatic
Fabryka 4x4 Aluminium Gearbox Guard – Petrol Automatic
Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Manual
Fabryka 4x4 Aluminium Gearbox Guard – Diesel Manual

Steel protection alternatives:
Steel Engine & Sump Guard for Toyota Land Cruiser J100 1998–2008
Steel Gearbox Guard for Toyota Land Cruiser J100 1998–2008

Explore more underbody protection:
Steel & Aluminium Underbody Protection

Key Features

• Designed specifically for Toyota Land Cruiser 100 / J100 diesel automatic models
• Vehicle application: 1998–2007
• Protects the transfer case from underside impacts
• Manufactured from heavy-duty 6mm aluminium plate
• Precision laser-cut construction
• Press-brake formed for vehicle-specific fitment
• Hand-finished during production
• Mounting components included
• Can be removed when drivetrain servicing is required
• Excellent corrosion resistance compared with untreated steel
• Suitable for off-road, overland, touring and expedition vehicles

Vehicle Compatibility

Important Transmission Compatibility

This transfer case guard is not a universal Land Cruiser 100 protection plate.

This OLB version is specifically designed for:

• Toyota Land Cruiser 100 / J100
• Diesel engine
• Automatic transmission
• 1998–2007 models

Different Fabryka 4x4 protection plates are available for other drivetrain configurations, including petrol automatic and diesel manual Land Cruiser 100 models.

Please confirm your engine and transmission configuration before ordering.

Technical Overview

Why Protect the Transfer Case?

The transfer case is a critical component of the Land Cruiser 100 four-wheel-drive system and is positioned underneath the vehicle where it can become exposed during demanding off-road driving.

Rocks, deep ruts, raised centre sections and other hard obstacles can strike the drivetrain from underneath. A severe impact to the transfer case can potentially damage the casing or surrounding components, resulting in lubricant loss or drivetrain problems.

A dedicated aluminium transfer case guard creates a strong protective barrier between the terrain and this important drivetrain component.

Heavy-Duty 6mm Aluminium Construction

This Fabryka 4x4 transfer case guard is manufactured from substantial 6mm aluminium plate.

The considerable material thickness provides robust underbody protection while retaining the useful characteristics of aluminium for off-road vehicle armour.

Aluminium is particularly attractive for touring and expedition builds because it combines:

• Strong impact protection
• Lower weight than comparable heavy steel armour
• Excellent natural corrosion resistance
• Suitability for wet and muddy environments
• Long-term durability for touring and off-road use

Precision Manufactured for Vehicle-Specific Fitment

The protection plate is manufactured using modern fabrication processes designed to provide repeatable dimensions and accurate vehicle fitment.

Production includes:

• Precision laser cutting
• Press-brake forming
• Hand finishing

This allows the protection plate to follow the required shape underneath the Land Cruiser 100 while maintaining the rigidity needed for effective underbody protection.

Protection for Serious Off-Road Use

The Land Cruiser 100 is widely used for touring, overlanding, expedition travel and demanding off-road driving. These conditions can expose drivetrain components to repeated contact with uneven terrain.

The transfer case guard helps protect against hazards including:

• Rocks
• Deep ruts
• Raised centre sections
• Tree roots
• Branches
• Trail debris
• Hidden obstacles during water crossings
• Uneven forestry and agricultural tracks

Land Cruiser 100 Aluminium Underbody Protection Range

Fabryka 4x4 offers several dedicated aluminium guards for the Land Cruiser 100, with different products depending on engine and transmission configuration.

• Aluminium Engine & Sump Guard – J100
• Aluminium Transfer Case Guard – Diesel Automatic – this product
• Aluminium Transfer Case Guard – Petrol Automatic
• Aluminium Gearbox Guard – Petrol Automatic
• Aluminium Transfer Case Guard – Diesel Manual
• Aluminium Gearbox Guard – Diesel Manual

This drivetrain-specific approach allows the correct protection plates to be selected for the actual transmission and engine configuration of the vehicle.

Steel Underbody Protection Alternatives

For customers who prefer steel underbody protection, OFM4x4 also offers dedicated steel guards for the Toyota Land Cruiser 100 / J100.

• Steel Engine & Sump Guard – Toyota Land Cruiser J100 1998–2008
• Steel Gearbox Guard – Toyota Land Cruiser J100 1998–2008

This gives Land Cruiser 100 owners a choice between heavy-duty steel protection and substantial aluminium armour depending on the vehicle build and intended use.

Aluminium vs Steel Underbody Protection

The best option depends on the intended terrain, overall vehicle weight and the type of protection package being built.

Ideal Uses

• Overlanding
• Expedition travel
• Green-laning
• Rocky tracks
• Deep ruts
• Forestry and agricultural roads
• Remote touring
• Water crossings with hidden obstacles
• Working 4x4 vehicles
• Land Cruiser 100 builds requiring additional drivetrain protection

What’s Included

• 1 × Fabryka 4x4 6mm aluminium transfer case guard
• Required mounting components

Product Code: OLB

Installation

• Vehicle-specific fitment for Toyota Land Cruiser 100 / J100
• Designed specifically for diesel automatic models
• Required mounting components supplied
• Check vehicle engine and transmission configuration before installation
• Position all fixings before final tightening
• Check clearance around the transfer case, exhaust and surrounding drivetrain components
• Re-check all fixings after initial off-road use
• The guard can be removed when drivetrain servicing requires additional access

Professional installation is recommended where the vehicle has previous drivetrain, exhaust or underbody modifications.

FAQs

Q1: What vehicle does this transfer case guard fit?
A: It is designed for Toyota Land Cruiser 100 / J100 diesel models manufactured between 1998 and 2007 and fitted with an automatic transmission.

Q2: Does this guard fit petrol Land Cruiser 100 models?
A: No. A separate Fabryka 4x4 transfer case guard is available for petrol automatic Land Cruiser 100 models.

Q3: Does it fit diesel manual models?
A: No. A separate transfer case guard is available specifically for diesel manual J100 vehicles.

Q4: How thick is the aluminium?
A: The transfer case guard is manufactured from 6mm thick aluminium.

Q5: What component does this guard protect?
A: It is designed specifically to protect the transfer case from direct underside impacts.

Q6: How is the guard manufactured?
A: The aluminium plate is precision laser-cut, formed using a press brake and then hand-finished.

Q7: Is mounting hardware supplied?
A: Yes. The required mounting components are included with the guard.

Q8: Is an engine guard available for the J100?
A: Yes. A matching Fabryka 4x4 aluminium engine and sump guard is available separately.

Q9: Are gearbox guards available?
A: Yes. Separate gearbox guards are available for specific Land Cruiser 100 drivetrain configurations, including petrol automatic and diesel manual vehicles.

Q10: Are steel guards available as an alternative?
A: Yes. OFM4x4 also offers steel engine/sump and gearbox protection for the Land Cruiser J100.

Q11: Why is transmission type important when ordering?
A: The position and shape of drivetrain components differ between automatic and manual configurations, so the correct vehicle-specific protection plate must be selected.

Q12: Is this suitable for off-road and expedition use?
A: Yes. The substantial 6mm aluminium construction is designed to protect the transfer case against rocks and other obstacles encountered during demanding off-road driving.
