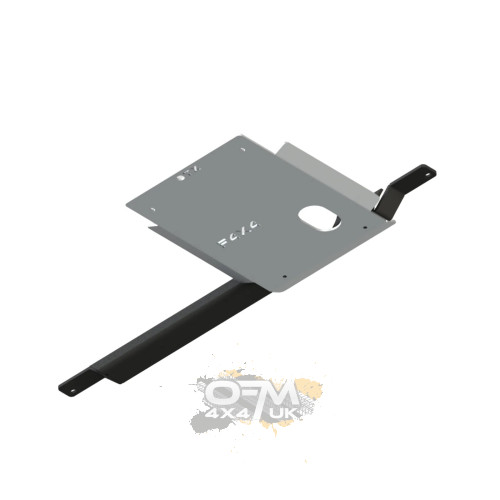

Fabryka 4x4 Aluminium Transfer Case Guard for Toyota Land Cruiser 100 J100 Petrol Automatic 1998–2007 – 6mm

The Fabryka 4x4 Aluminium Transfer Case Guard is a heavy-duty, vehicle-specific underbody protection plate designed for Toyota Land Cruiser 100 / J100 petrol models with automatic transmission manufactured between 1998 and 2007.

Manufactured from substantial 6mm aluminium plate, the guard protects the transfer case against rocks, deep ruts, raised ground, mud, branches and other obstacles encountered during demanding off-road driving, green-laning, overlanding and expedition travel.

The protection plate is precision laser cut, formed using a press brake and then hand finished to provide accurate vehicle-specific fitment and a durable protective structure underneath the drivetrain.

Important Fitment: This version is specifically intended for petrol Toyota Land Cruiser J100 models with automatic transmission. Separate Fabryka 4x4 transfer case guards are available for diesel automatic and diesel manual configurations.

Vehicle Compatibility: Toyota Land Cruiser 100 / J100 1998–2007

Engine: Petrol

Transmission: Automatic

Product Code: OTX

Build your Toyota Land Cruiser 100 aluminium underbody protection package:
Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser 100
Fabryka 4x4 Aluminium Gearbox Guard – Diesel Automatic
Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Automatic
Fabryka 4x4 Aluminium Gearbox Guard – Petrol Automatic
Fabryka 4x4 Aluminium Transfer Case Guard – Petrol Automatic
Fabryka 4x4 Aluminium Gearbox Guard – Diesel Manual
Fabryka 4x4 Aluminium Transfer Case Guard – Diesel Manual

Steel protection alternatives:
Steel Engine & Sump Guard for Toyota Land Cruiser J100 1998–2008
Steel Gearbox Guard for Toyota Land Cruiser J100 1998–2008

Explore more underbody protection:
Steel & Aluminium Underbody Protection

Key Features

• Designed specifically for Toyota Land Cruiser 100 / J100 petrol automatic models
• Vehicle application: 1998–2007
• Protects the transfer case from direct underside impacts
• Manufactured from heavy-duty 6mm aluminium plate
• Precision laser-cut construction
• Press-brake formed for accurate vehicle-specific fitment
• Hand finished during production
• Required mounting components included
• Can be removed when drivetrain servicing requires additional access
• Excellent natural corrosion resistance
• Suitable for off-road, overland, touring and expedition vehicles

Vehicle Compatibility

Important Engine & Transmission Compatibility

This transfer case guard is not a universal Toyota Land Cruiser 100 protection plate.

This Fabryka 4x4 OTX version is specifically designed for:

• Toyota Land Cruiser 100 / J100
• 1998–2007 models
• Petrol engine
• Automatic transmission

Separate transfer case protection plates are available for diesel automatic and diesel manual vehicles.

Please confirm the vehicle's engine and transmission configuration before ordering.

Technical Overview

Heavy-Duty Transfer Case Protection

The transfer case is a critical component of the Land Cruiser 100 four-wheel-drive system and is positioned underneath the vehicle where it can become exposed when travelling across difficult terrain.

Rocks, raised centre sections, deep ruts and other obstacles can make direct contact with the drivetrain. A severe strike to the transfer case may damage the casing or surrounding components and can potentially lead to lubricant loss or drivetrain problems.

This Fabryka 4x4 aluminium transfer case guard creates a substantial protective barrier between the terrain and the transfer case.

6mm Aluminium Construction

The guard is manufactured from substantial 6mm thick aluminium plate.

The material thickness provides strong protection for an exposed drivetrain component while retaining the practical advantages associated with aluminium underbody armour.

• Strong resistance to underside impacts
• Lower weight than comparable heavy steel armour
• Excellent natural corrosion resistance
• Well suited to wet and muddy environments
• Suitable for long-distance touring and expedition vehicles

Precision Laser-Cut Construction

The aluminium protection plate is precision laser cut during production.

This allows the profile, edges and mounting areas to be manufactured consistently and accurately, which is especially important for protection located close to drivetrain components.

Press-Brake Formed & Hand Finished

After cutting, the aluminium plate is formed using a press brake to create the required profile and structural shape.

The protection plate is then hand finished during production, combining precision fabrication with manual finishing before the completed component is supplied.

Designed Specifically for Petrol Automatic J100 Models

The transmission and transfer case arrangement can differ between Land Cruiser 100 drivetrain configurations.

For this reason, Fabryka 4x4 produces dedicated protection plates for specific engine and transmission combinations.

This product should be selected specifically for a petrol automatic Toyota Land Cruiser 100 / J100.

Pair with the Petrol Automatic Gearbox Guard

For broader drivetrain protection, combine this transfer case guard with the matching Fabryka 4x4 gearbox protection plate for petrol automatic J100 models.

• Fabryka 4x4 Aluminium Gearbox Guard – Petrol Automatic
• Fabryka 4x4 Aluminium Transfer Case Guard – Petrol Automatic – this product

Using both guards provides dedicated protection beneath the automatic transmission and transfer case rather than leaving one of the drivetrain sections exposed.

Add Aluminium Engine & Sump Protection

The Fabryka 4x4 aluminium engine and sump guard can be added to extend protection towards the front underside of the vehicle.

Fabryka 4x4 Aluminium Engine & Sump Guard for Toyota Land Cruiser 100 J100 – 6mm

Combining the engine, gearbox and transfer case protection plates creates a substantially broader aluminium underbody protection package for petrol automatic Land Cruiser 100 vehicles.

Petrol Automatic Aluminium Protection Package

For a petrol automatic Toyota Land Cruiser 100, the recommended Fabryka 4x4 aluminium protection combination is:

• 6mm Aluminium Engine & Sump Guard
• 6mm Aluminium Gearbox Guard – Petrol Automatic
• 6mm Aluminium Transfer Case Guard – Petrol Automatic

This combination provides protection beneath the engine, sump, automatic transmission and transfer case.

Other Land Cruiser 100 Drivetrain Configurations

Owners of other J100 drivetrain configurations should use the correct matching guards rather than the petrol automatic versions.

Diesel Automatic:

• Aluminium Gearbox Guard – Diesel Automatic
• Aluminium Transfer Case Guard – Diesel Automatic

Diesel Manual:

• Aluminium Gearbox Guard – Diesel Manual
• Aluminium Transfer Case Guard – Diesel Manual

Steel Underbody Protection Alternatives

For Land Cruiser 100 owners who prefer traditional steel protection, OFM4x4 also offers dedicated steel guards.

• Steel Engine & Sump Guard for Toyota Land Cruiser J100 1998–2008
• Steel Gearbox Guard for Toyota Land Cruiser J100 1998–2008

6mm Aluminium vs Steel Protection

Protection Against Off-Road Hazards

The transfer case guard helps protect against common hazards encountered during demanding off-road use, including:

• Rocks and exposed stone
• Deep wheel ruts
• Raised centre sections
• Tree roots
• Branches
• Mud and trail debris
• Hidden obstacles during water crossings
• Forestry and agricultural tracks

Ideal Uses

• Overlanding
• Expedition travel
• Green-laning
• Rocky tracks
• Deep ruts
• Forestry and agricultural roads
• Remote touring
• Water crossings
• Working 4x4 vehicles
• Petrol automatic Land Cruiser 100 builds requiring additional transfer case protection

What’s Included

• 1 × Fabryka 4x4 6mm aluminium transfer case guard
• Required mounting components

Product Code: OTX

Note: The finished product may differ in some minor details from the photographs due to ongoing manufacturing development.

Installation

• Vehicle-specific fitment for Toyota Land Cruiser 100 / J100
• Designed specifically for petrol automatic models
• Required mounting components supplied
• Confirm engine and transmission configuration before installation
• Position all mounting points before final tightening
• Check clearance around the transfer case, gearbox, exhaust and surrounding drivetrain components
• Re-check all mounting hardware after initial off-road use
• The guard can be removed when drivetrain servicing requires additional access

Professional installation is recommended where the vehicle has previous drivetrain, exhaust or underbody modifications.

FAQs

Q1: What vehicle does this transfer case guard fit?
A: It is designed for Toyota Land Cruiser 100 / J100 petrol models manufactured between 1998 and 2007 and fitted with an automatic transmission.

Q2: Is this suitable for petrol automatic Land Cruiser 100 models?
A: Yes. This OTX version is specifically designed for the petrol automatic drivetrain configuration.

Q3: Does this guard fit diesel automatic models?
A: No. A separate Fabryka 4x4 aluminium transfer case guard is available specifically for diesel automatic J100 models.

Q4: Does it fit diesel manual models?
A: No. A separate transfer case guard is available for diesel manual Land Cruiser 100 vehicles.

Q5: How thick is the aluminium?
A: The transfer case guard is manufactured from 6mm thick aluminium.

Q6: What component does the guard protect?
A: It is designed specifically to protect the transfer case against direct underside impacts.

Q7: How is the guard manufactured?
A: The aluminium plate is precision laser cut, formed using a press brake and then hand finished.

Q8: Is mounting hardware supplied?
A: Yes. The required mounting components are included with the guard.

Q9: Is a matching petrol automatic gearbox guard available?
A: Yes. A dedicated Fabryka 4x4 aluminium gearbox guard is available for petrol automatic Land Cruiser 100 models.

Q10: Is an aluminium engine and sump guard available?
A: Yes. A 6mm Fabryka 4x4 aluminium engine and sump guard is available separately for the J100.

Q11: Can I build a complete petrol automatic aluminium protection package?
A: Yes. This transfer case guard can be combined with the aluminium engine/sump guard and corresponding petrol automatic gearbox guard for broader protection.

Q12: Why is the engine and transmission configuration important?
A: Drivetrain layout and mounting arrangements vary between Land Cruiser 100 configurations, so the correct vehicle-specific gearbox and transfer case guards must be selected.

Q13: Is steel protection available as an alternative?
A: Yes. OFM4x4 also offers steel engine/sump and gearbox guards for Toyota Land Cruiser J100 models.

Q14: Is this suitable for off-road and expedition use?
A: Yes. The substantial 6mm aluminium construction is designed to protect the transfer case during demanding off-road, touring, overland and expedition use.
