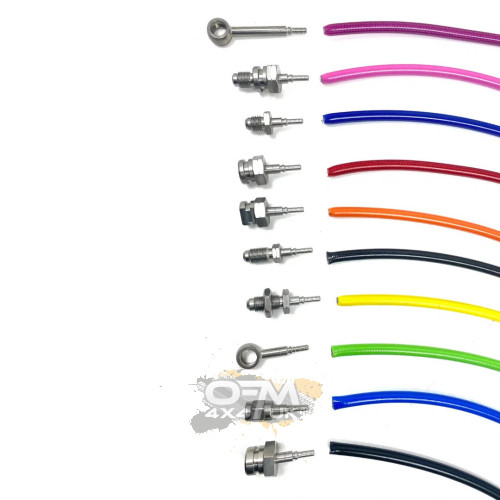

Stainless Braided Brake Lines Kit for Toyota Hilux Mk6 / Mk7 2005–2017 4WD WITH ESP – 4 Line Set

This stainless braided brake line kit is designed specifically for Toyota Hilux Mk6 and Mk7 4WD models (2005–2017) fitted with ESP (Electronic Stability Program). This is a 4-line configuration matched to the ESP braking layout. The hoses replace the factory rubber brake lines to minimise expansion under pressure, delivering a firmer pedal feel and more consistent braking.

This upgrade is particularly beneficial for Hilux vehicles used for towing, off-road driving, overland travel and vehicles fitted with suspension lift kits. Custom hose lengths can be supplied to ensure correct routing and safe slack at full suspension articulation.

Key Features

• Vehicle-specific braided brake line kit for Toyota Hilux Mk6 / Mk7
• Designed for ESP-equipped 4WD models
• Correct 4-line configuration for ESP brake systems
• Improved brake pedal feel versus standard rubber hoses
• Reduced hose expansion under heavy braking
• PTFE inner core with stainless steel braid
• Protective outer coating for corrosion and abrasion resistance
• Custom lengths available for suspension lifts

Vehicle Compatibility

• Toyota Hilux Mk6 (2005–2011)
• Toyota Hilux Mk7 (2011–2017)
• Drivetrain: 4WD only
• Braking system: WITH ESP

If you are unsure whether your Hilux is fitted with ESP, contact us with your registration number or VIN and we will confirm the correct kit.

Lifted Vehicles & Custom Hose Lengths

Extended braided brake lines are strongly recommended for Hilux vehicles fitted with suspension lift kits. Custom hose lengths can be supplied to suit your setup.

• Advise your lift height (e.g. 40 mm, 50 mm, 75 mm)
• Confirm if aftermarket control arms or relocated mounts are fitted
• Photos at full axle droop can help ensure correct hose length

What’s Included

• Stainless braided brake hoses – 4 line set
• Vehicle-specific fittings for ESP configuration
• Required banjo bolts (where applicable)
• Copper crush washers (where applicable)
• Basic installation guidance

Technical Specifications

• Inner hose: PTFE (Teflon)
• Outer: Stainless steel braid with protective PVC cover
• Fittings: Stainless steel
• Working pressure: approx. 290 bar
• Burst pressure: approx. 870 bar
• Temperature range: -70°C to +260°C

Installation Notes

• Professional installation is strongly recommended
• Brake system must be fully bled after installation
• ESP systems must be bled correctly using appropriate procedures
• Check hose clearance at full steering lock and suspension travel
• Recheck all fittings after the first test drive

Recommended Use Cases

• Toyota Hilux Mk6 / Mk7 with ESP
• Lifted Hilux builds
• Towing and work vehicles
• Overland and off-road use

Shipping & Delivery

• UK delivery via tracked courier
• Custom-length hoses may require additional build time
• Contact us if you require delivery by a specific date

FAQs

1. Does this fit Hilux models without ESP?
No. This kit is designed specifically for ESP-equipped Hilux Mk6 and Mk7 models. Non-ESP vehicles require a different hose configuration.

2. Is this a 4-line or 6-line kit?
This is a 4-line kit, matched to the ESP braking layout.

3. Can these brake lines be extended for a lift kit?
Yes. Custom hose lengths can be supplied for lifted suspension setups.

4. Will braided brake lines improve braking performance?
Yes. Reduced hose expansion results in a firmer pedal and more consistent braking feel.

5. Are these suitable for off-road use?
Yes. Stainless braided brake lines are ideal for off-road, towing and heavy-duty use.

6. How do I confirm my Hilux has ESP?
Contact us with your registration number or VIN and we will confirm the braking system.
